Fully Enclosed Stainless Steel Linear Slides with Ball Screws: Applications in Packaging Machinery and
Carton Packing
In the field of packaging machinery, the carton packing process is a crucial step in ensuring the safe and
efficient entry of products into the market. Fully enclosed stainless steel linear slides with ball screws
(hereinafter referred to as "linear slides"), with their high precision, strong rigidity, and fully enclosed
dustproof characteristics, have become a core transmission component of modern carton packing mach
inery, significantly improving packaging efficiency and quality. The following describes their working
principle, application scenarios, advantages, and maintenance points.
I. Working Principle and Core Functions: Linear slides achieve precise linear motion through ball screw
transmission. Their fully enclosed stainless steel belt design effectively isolates dust, moisture, and other
external contaminants, ensuring the long-term stable operation of the internal transmission mechanism.

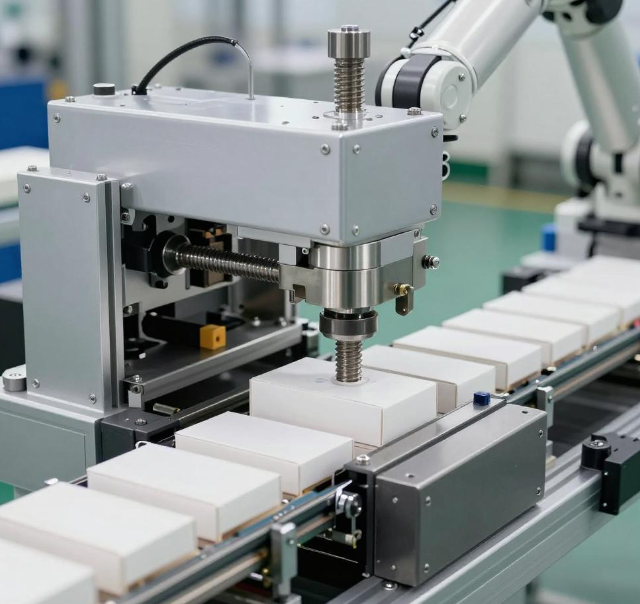

In carton packing machines, the slide is responsible for driving the actuator (such as a push rod or suctio
n cup) to complete the following actions: Carton forming and positioning: The slide controls the carton
suction device, folding flat cartons into three-dimensional structures and precisely positioning them at
the filling station.
Product conveying and filling: Through synchronous belts or ball screw drives, products are orderly fed
into the cartons, with positioning accuracy reaching millimeter levels, avoiding filling deviations.
Sealing and unloading: The slide pushes the sealing mechanism to complete gluing or pressing, ensuring
that the carton is sealed before output.
Its modular design supports rapid integration, reducing mechanical debugging time, and is suitable for
switching between multiple product specifications.
II. Typical Application Scenarios: Pharmaceutical packaging:
In the pharmaceutical industry, linear slides are used to load blister packs and instruction manuals into
cartons, meeting GMP cleanroom requirements. The fully enclosed structure prevents dust contamination
, ensuring the hygiene and safety of pharmaceuticals.
Food packaging: For perishable products such as cooked food and pastries, the slide drives the conveyo
r belt to load items into pre-formed cartons and cooperates with the sealing mechanism to complete
sealing, extending shelf life.
Electronic product packaging: The packaging of precision components (such as chips) requires high repe
titive positioning accuracy. Linear slides can stably control the filling action, avoiding product damage.
Cosmetic packaging: Suitable for automatic carton packing of irregularly shaped items such as bottles,
jars, and tubes. The multi-axis linkage capability of the slide supports complex trajectory movements.
III. Core Advantages: High precision and consistency: Positioning accuracy reaches ±0.01mm, ensuring
accurate carton positioning and reducing the scrap rate. High Load Capacity: Horizontal load capacity
up to 110kg, suitable for heavy packaging needs such as palletizing full cases of beverages.
Fully Enclosed Dustproof Design: Stainless steel belt sealing structure extends service life, suitable for dusty and oily
environments, reducing maintenance frequency. High Efficiency and Energy Saving: High screw drive
efficiency reduces energy consumption by 30% compared to traditional pneumatic systems, improving
overall production line efficiency.
IV. Maintenance and Optimization Key Points: Regular Lubrication: Although the fully enclosed design
reduces contamination, the screw lubrication status still needs to be checked regularly to avoid dry fric
tion.
Sealing Inspection: Ensure the stainless steel belt is undamaged to prevent external particles from
entering and causing transmission jamming.
Parameter Calibration: Adjust the slide speed and stroke
for different product specifications to optimize the packaging cycle.
Troubleshooting: Common problems
such as positioning deviations are often due to sensor signal interference; the stability of electrical
connections needs to be checked.
V. Future Trends: With the development of intelligent packaging,
linear slides will integrate more sensors to achieve real-time status monitoring and adaptive adjustment.
For example, AI algorithms can predict maintenance cycles, further reducing downtime.
Summary: The fully enclosed stainless steel belt screw linear slide, through its precision transmission
and protective design, becomes the "heart" of packaging machinery. It not only improves packaging
speed and quality but also reduces overall operating costs, making it an ideal choice for automation
upgrades in the food, pharmaceutical, and electronics industries.
With technological advancements, its
application boundaries will continue to expand, driving the packaging industry towards higher efficiency
and better quality.
