Multi-angle Changes 6DOF Motion Platform for Gaming Racing Simulator Flight Simulator

6dof motion platform functions:

Spatial position control: 6dof motion platform can accurately control the position of objects in three-dimensional space (X, Y, Z axis). For example, in industrial production, 6dof motion simulator can accurately locate parts and components to reach the specified processing position.

Posture adjustment: 6dof motion simulator can adjust the posture of objects around three coordinate axes (pitch, yaw, roll). In flight simulation training, 6dof motion simulator can simulate various posture changes of aircraft in the air, such as tilting, turning and other actions of the fuselage during takeoff, landing and hovering.

Motion simulation: 6dof motion simulator can simulate a variety of complex motion modes, such as vibration and swing. In the dynamic theater, 6dof motion platform simulates the bumps or shakes of vehicles in the film through the movement of the platform to enhance the audience's immersion.

Force feedback function: 6dof motion sim can provide force feedback. For example, in surgical robot applications, doctors can feel the force between the instrument and the tissue when operating, so that 6dof motion sim can better control the operation force.

6dof motion platform application areas:

1. Entertainment industry: dynamic cinema - somatosensory games - theme park amusement facilities, etc.

2. Simulation training industry: flight simulation - ship simulation - car driving simulation - military training, etc.

3. Aerospace field: simulation test - dynamic simulation - aircraft structure test, etc.

4. Precision machining industry: six-axis linkage machine tool - laser welding, etc.

5. Medical equipment field: - surgical robot - image-guided interventional surgery - precision radiotherapy, etc.

6. Scientific research field: - material mechanics experiment - biomedical research - earthquake simulation, etc.

7. Automated production industry

8. RF simulation field

The Multi-angle Changes 6DOF Motion Platform, a motion platform designed specifically for racing and

 flight simulators, offers the following core advantages:

1. High-Degree-of-Freedom Dynamic Simulation Capabilities

Through its six-degree-of-freedom (6DOF) parallel architecture, it achieves X/Y/Z translation, as well as

pitch, yaw, and roll, accurately reproducing complex poses such as drifting a car or rolling an aircraft.

It supports coordinated multi-angle motion, such as simultaneously simulating a dive and lateral tilt d

uring acceleration, enhancing immersion.

2. High Precision and Fast Response

Utilizing a servo motor or hydraulic drive system, it achieves accelerations of 1-2g and a response time

of less than 10ms, meeting the demands of high-speed dynamic simulation (such as instantaneous feed

back during a car cornering).

Equipped with a grating/time-of-flight feedback system, it achieves sub-micron repeatability, ensuring

synchronization of movements with the virtual environment. 3. Modularity and Scalability

Supports customized loads (from hundreds of kilograms to tens of tons), adapting to simulators of vary

ing sizes (such as home racing chairs or professional flight training cabins).

The scalable PLC control system is compatible with real-time data interfaces from major game engines

(such as Unity and Unreal Engine).

4. Immersive Interactive Experience

Combining VR/AR technology, 6DOF motion is integrated with visual and haptic feedback to achieve du

al immersion (such as simulating the weightlessness of a roller coaster).

Supports multi-user collaboration, making it suitable for esports competitions or team flight training.

5. Durability and Safety

The high-strength aluminum alloy/steel frame design boasts a fatigue life exceeding 100,000 hours, ma

king it suitable for frequent recreational or training use.

Integrated emergency braking and overload protection ensure safety even in extreme motion conditions.

This platform excels in both entertainment and professional training. For example, racing simulators can

recreate the bumpy ride of the Nürburgring, while flight simulators can replicate the high-G maneuvers

of fighter jets.

Application areas:

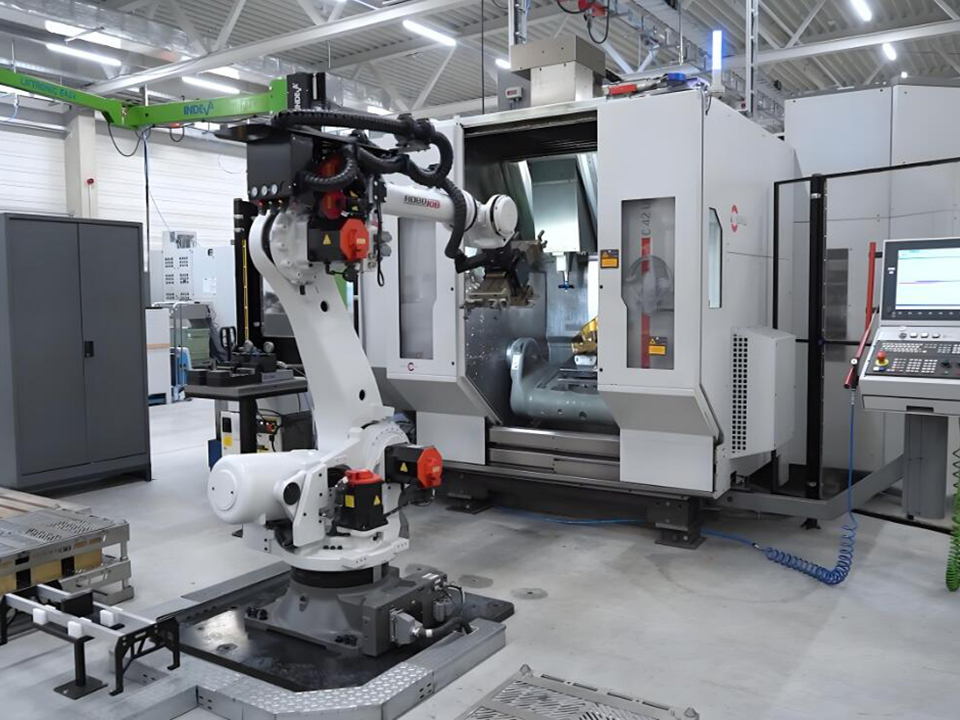

Machine tool processing industry

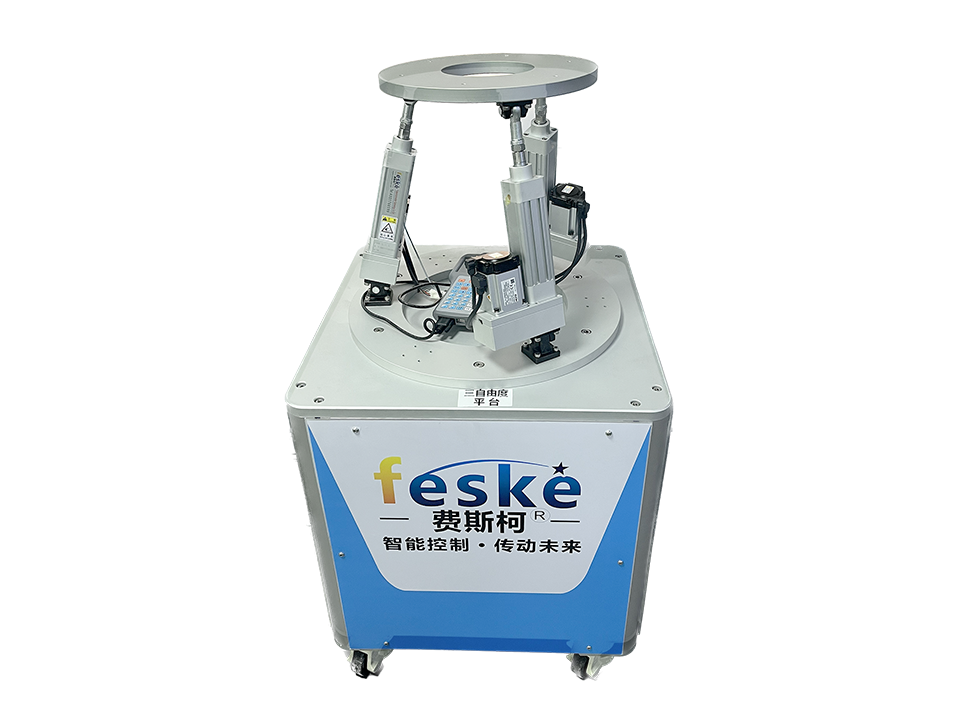

Scientific experiments

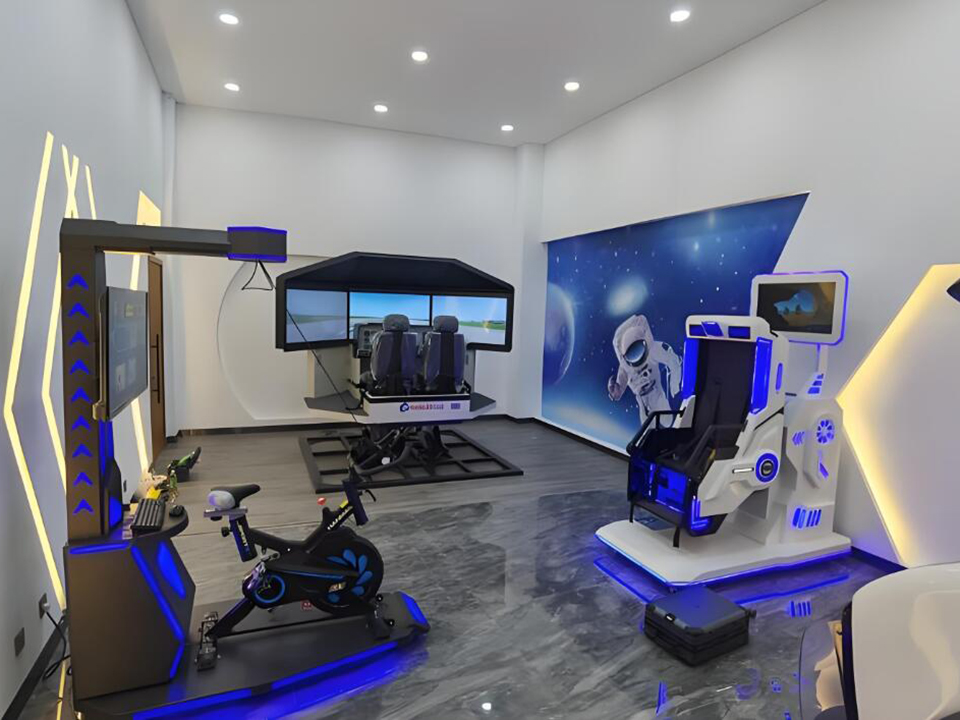

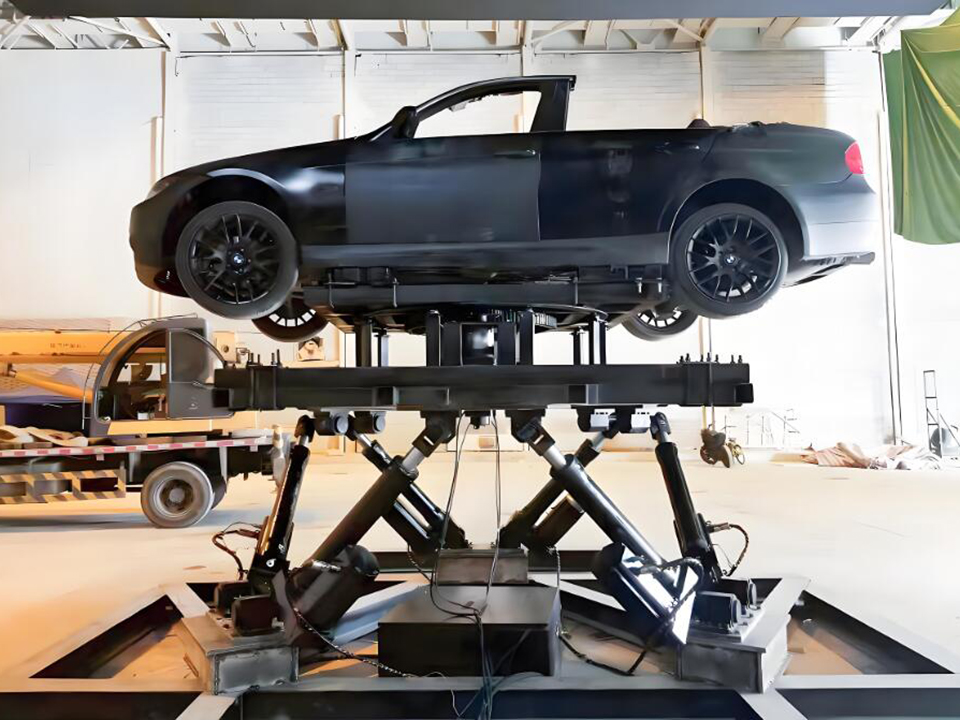

Car driving simulator

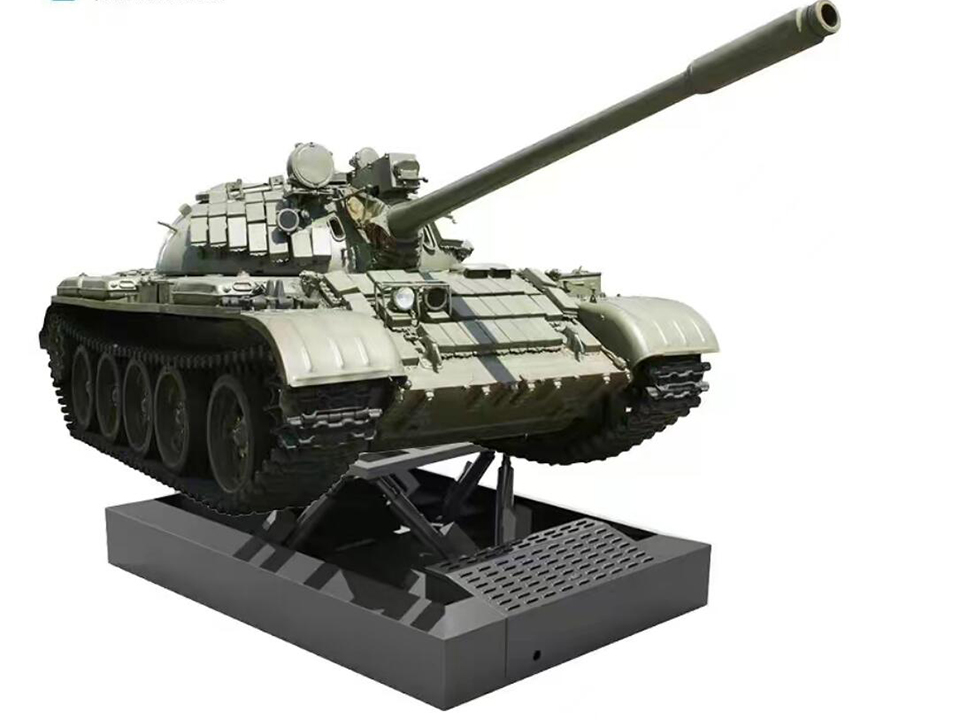

Military industry

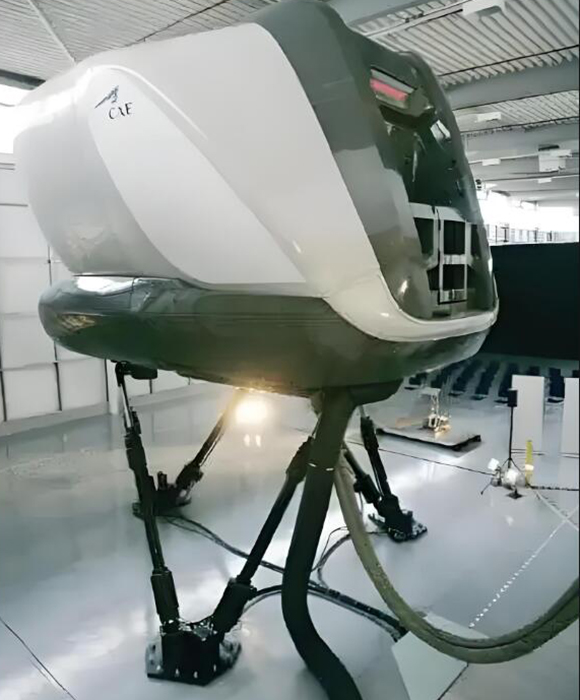

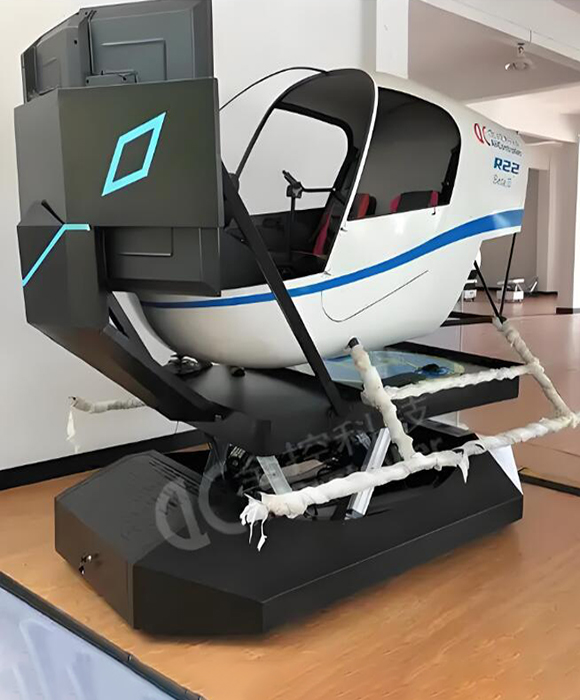

Aviation simulator

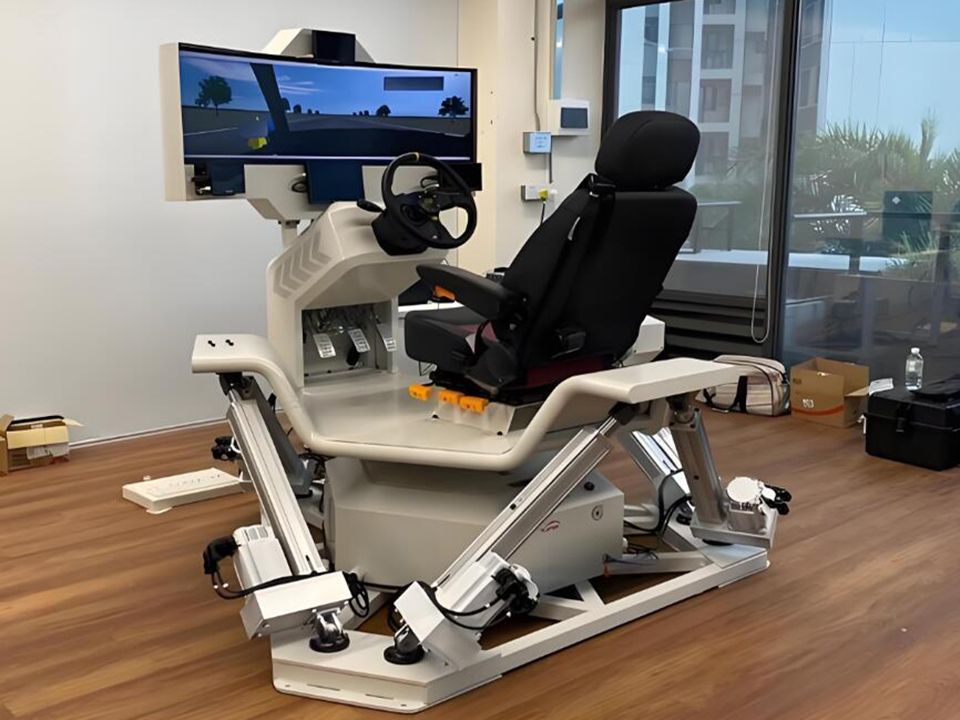

Sensory gaming seat

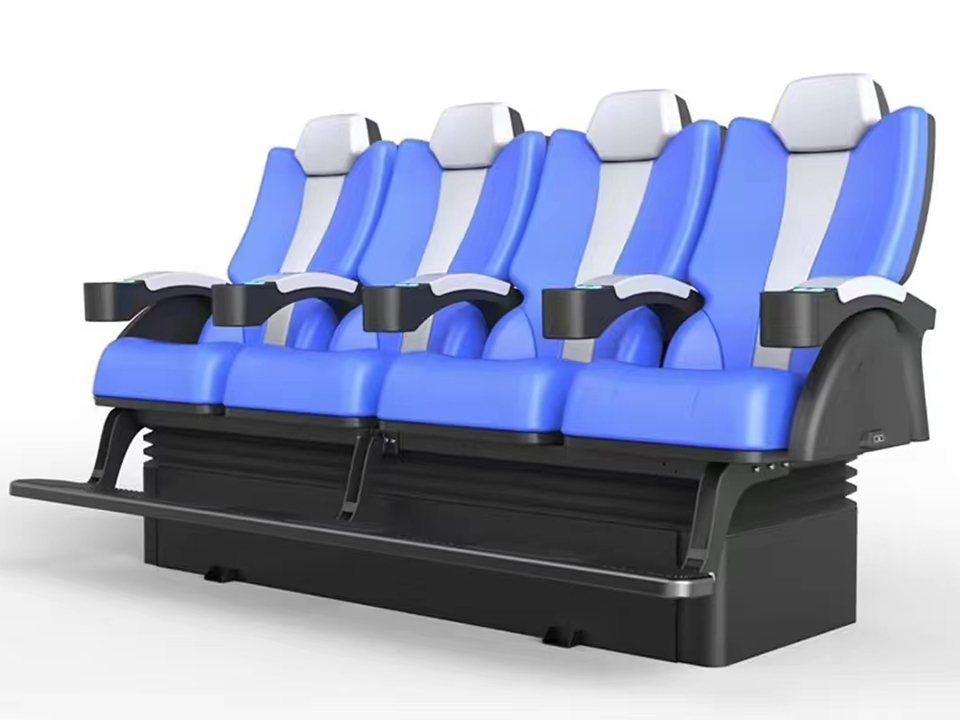

6D cinema seat

RF antenna adjustment

Ship industry

Medical industry

A 6D Motion Platform is an electromechanical system capable of simulating the precise motion of an object

in three-dimensional space along three translational axes (X, Y, Z) and three rotational axes (Roll, Pitch, Yaw).

 It is widely used in simulation training, industrial testing, scientific research experiments, and immersive

entertainment.

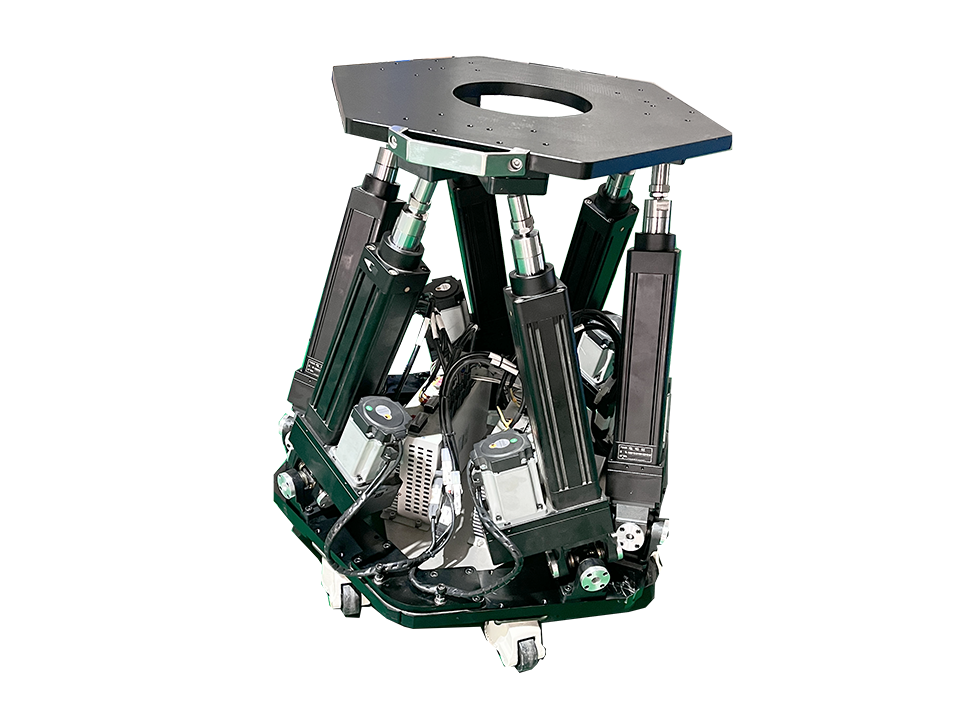

I. Basic Structure and Working Principle This platform typically employs a Stewart parallel mechanism (also

known as a six-axis parallel platform), consisting of six independently extendable actuators (electrically or

hydraulically driven) connecting the upper and lower platforms. The lower platform is fixed, while the upper

platform achieves full-degree-of-freedom motion within space through the coordinated extension and retra

ction of six actuators:

Three translational degrees of freedom:

X-axis (Surge)

Y-axis (Sway)

Z-axis (Heave)

Three rotational degrees of freedom:

Roll (Roll around the X-axis)

Pitch (Pitch around the Y-axis)

Yaw (Yaw around the Z-axis)

The control system uses high-precision sensors to provide real-time feedback on position and attitude,

combined with motion algorithms, enabling the platform to reproduce complex dynamic trajectories, such

as aircraft dives, vehicle bumps, or earthquake swaying.

II. Main Types and Drive Methods

Table

Type Drive Method Features Applicable Scenarios

Electric Six-DOF Platform

Servo Motor Drive

Fast response, high precision, low maintenance cost, low noise

Flight simulators, driving simulations, VR experiences, scientific research testing

Hydraulic Six-DOF Platform

Hydraulic Actuator Drive

Strong load capacity, high dynamic response, suitable for high-frequency vibration testing

Vehicle durability testing, aerospace R&D, heavy equipment simulation

Heavy-Duty Platform

Electric/Hydraulic Hybrid

Load capacity can reach several tons to over ten tons, high rigidity, high precision

Ship swaying tests, spacecraft docking simulation, heavy machinery testing

Among them, electric systems are becoming the mainstream trend due to their energy saving, environmen

tal protection, and precise control; while hydraulic systems still have irreplaceable advantages in high ac

celeration and high load testing.

III. Core Advantages

High Dynamic Response: Acceleration can reach 1–2g, quickly responding to external input signals.

High Precision Control: Positioning error can be controlled within ±0.1mm under closed-loop control.

Multi-degree-of-freedom coordination: Supports simulation of complex motion trajectories, such as simult

aneous tilting, lifting, and rotation.

Modular design: Platform size and performance parameters can be customized according to load, travel, and

 space requirements.

IV. Typical Application Areas

The scope of application for six-degrees-of-freedom (6-DOF) platforms has expanded into numerous high-tech fields, including motion-based entertainment, flight simulation, medical rehabilitation, precision manufacturing, and aerospace testing. At its core, this technology utilizes the coordinated motion of six degrees of freedom—comprising three translational movements and three rotational movements—to precisely replicate complex dynamic environments found in the real world.

Key Application Areas:

1.

Motion-Based Entertainment and VR Experiences

Widely deployed in settings such as motion theaters, racing simulators, and roller coaster games, these platforms enhance immersion by synchronizing movements—such as vibrations, tilting, and vertical lifts—with the visual content of films or games. For instance, the electric motion seats found in the "Fifth Drop" motion theater and "Biar" virtual gaming experiences are both powered by this technology.

2.

Driving and Flight Simulation Training

Utilized in flight simulators, ship simulators, and automotive driving simulators, these platforms provide pilots, naval crews, and drivers with highly realistic operational environments. The platforms can simulate conditions such as takeoff, landing, turbulence, and lateral rolling, thereby enhancing the safety and effectiveness of training programs.

3.

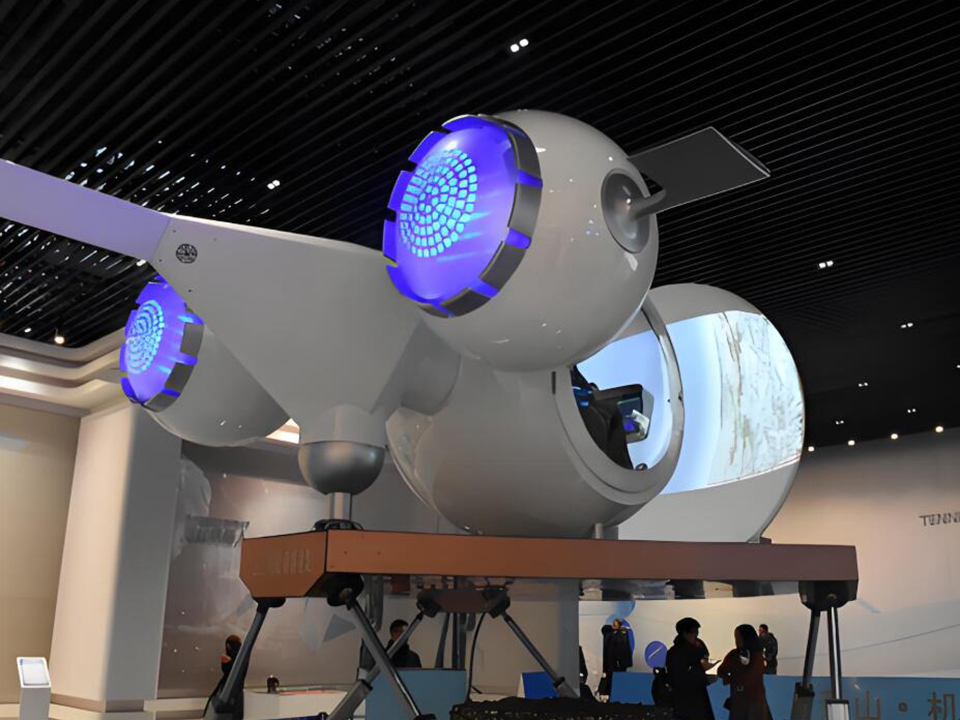

Aerospace and Space Docking Trials

In the aerospace sector, 6-DOF platforms are employed for satellite docking experiments, spacecraft structural testing, and ground-based simulations of rendezvous and docking maneuvers. For example, a large-scale platform at China University of Petroleum (Huadong) is capable of simulating complex marine environments to evaluate the performance of floating offshore equipment.

4.

Medical and Rehabilitation Training

Applied in maritime medical rescue simulation platforms, this technology can simulate—in real-time—the pitching and rolling motions of a vessel amidst wind and waves. This enables medical personnel to practice emergency procedures under extreme conditions, thereby enhancing their overall emergency response capabilities.

5.

Precision Testing and Industrial Inspection

In fields such as automotive engineering, rail transportation, and aerospace, these platforms are used for full-vehicle road simulation, component fatigue testing, and tilt/oscillation trials. The platforms can accurately replicate various road or sea conditions, allowing for a comprehensive assessment of product reliability.

6.

High-Precision Positioning and Vibration Isolation

Within precision equipment—such as optical systems, integrated circuit (IC) manufacturing machinery, and electron microscopes—6-DOF platforms facilitate precise positioning and vibration isolation at micron or even nanometer scales, thereby ensuring the accuracy of manufacturing and measurement processes.
