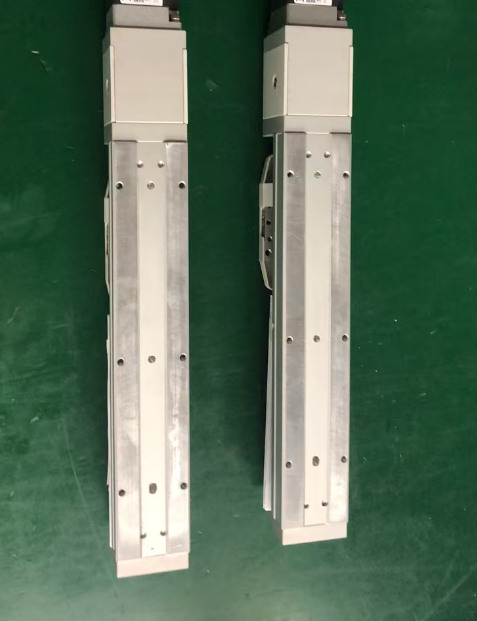

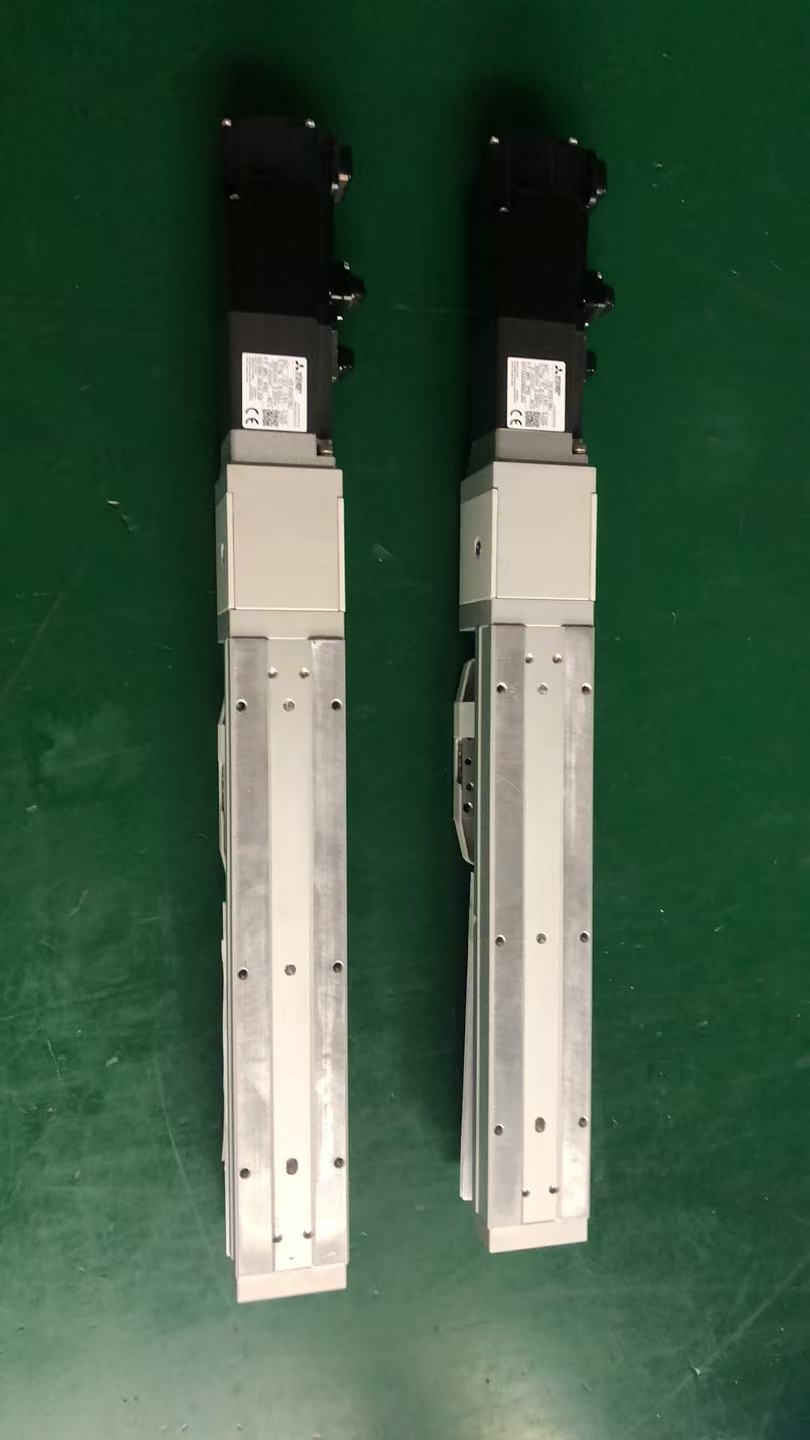

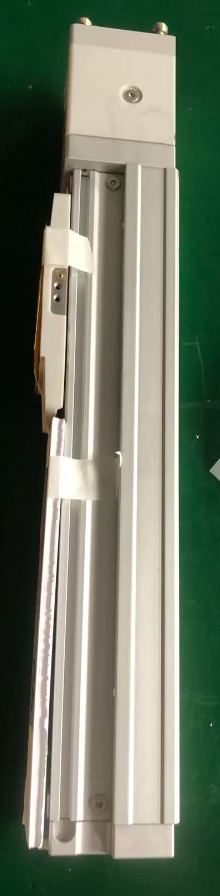

Waterproof And Oil-proof Sealed Linear Actuator

Maximum horizontal load: 25KG

Model: GCH-40 embedded full-closed module

Repeat positioning accuracy: +0.01/+0.02 mm

Customizable stroke: 50-800mmScrew outer diameter: 10 mm

Lead: 02/05/10mm

Motor power: 50W (motor can be customized)

Maximum speed: 100250V500 MM/S

Introducing Our Robust Linear Actuator: Engineered for Extreme Industrial Environments

Discover our cutting-edge embedded modular component, a high-performance Linear Actuator meticulously designed for the most demanding and harsh industrial environments. This advanced electric linear actuator combines unparalleled durability with compact integration, offering a superior solution for a wide range of applications where reliability is paramount. Experience the difference with our state-of-the-art electric linear actuators.

🔧 Core Features: Built for Resilience and Integration

• IP67/IPX7 Grade Protection Sealing Design: The Ultimate Electric Linear Actuator for Harsh Conditions
  Our Linear Actuator is engineered with an uncompromising IP67/IPX7 grade protection sealing design. Utilizing high-quality silicone sealing rings (O-rings) and a precision shell structure, this electric linear actuator offers complete dustproof and waterproof capabilities. It can withstand immersion in 1 meter of water for 30 minutes without any leakage, ensuring continuous operation even in the wettest conditions. Furthermore, its robust construction provides exceptional resistance to oil erosion, making it the ideal electromechanical linear actuator for humid, dusty, or oily industrial settings. This level of protection makes it a reliable choice among electric linear actuators when facing environmental challenges.

• Embedded Compact Structure and Modular Sliding Installation: Smart Integration for Every Linear Actuator
  This innovative Linear Actuator boasts an embedded compact structure that supports PCB embedded installation. This means our electric linear actuator can be directly integrated into your existing devices, significantly saving valuable space and dramatically improving overall system integration. The modular sliding design further enhances its versatility, allowing for convenient quick plug-in and easy maintenance. This adaptability is perfectly suited to the efficient deployment requirements of modern automated production lines, where quick changes and minimal downtime are crucial. This makes it an incredibly versatile electric linear actuator that can be deployed quickly, potentially even as a high speed linear actuator in specific configurations.

Elevate Your Industrial Applications with Our Advanced Electric Linear Actuators

Our embedded modular Linear Actuator is more than just a component; it's a robust solution designed to thrive where others fail. Whether you require an electric linear actuator for dusty manufacturing floors, wet processing plants, or applications demanding compact integration and easy maintenance, this product delivers. Its superior protection and smart design make it a standout among electric linear actuators, providing reliability and efficiency to your operations. For demanding tasks requiring rapid deployment and resilient performance, consider the capabilities of this high speed linear actuator in a compact, protected package.

This waterproof and oil-resistant sealed linear actuator has a wide range of applications, from industrial

and medical fields to automotive and smart home systems. Here are a few typical areas:

1. Industrial Automation

Heavy equipment: Such as port machinery and oil platforms, it can operate stably in high-load, high-

humidity, and oily environments.

Production lines: It can precisely control position and force in automotive manufacturing, 3D printing,

and logistics sorting.

New energy: In outdoor applications like solar panel installation, its sealing performance is crucial.

2. Medical Equipment

Hospital beds/operating tables:  It's ideal for safely and quietly adjusting height and angle.

Rehabilitation equipment:  It assists patients with exercises, requiring high precision and reliability.

3. Automotive and Smart Home

Automotive: For applications like electric tailgates and seat adjustment, the 24V low-voltage motor

version is safer.

Smart home: Used in electric curtains and smart door locks, its IP65 waterproof and dustproof rating

makes it suitable for indoor and outdoor installation.

4. Other Fields

Entertainment: In racing simulators and flight simulators, it provides realistic force feedback.

Printing/Textile: It performs stably in equipment requiring high speed and high precision.

The core advantages of the embedded linear module lie in its compact structure, stable precision, robust protection, and convenient maintenance—qualities that perfectly address the fundamental requirements for integration into automated equipment. Its specific advantages are outlined below:

1.

**Structural Advantages:** Featuring an integrated design that combines the embedded guide rail with the aluminum body, the module significantly reduces overall volume while enhancing structural rigidity and vibration resistance. This enables it to support higher loads within compact spatial constraints.

2.

**Precision Advantages:** Linear motion accuracy reaches ±0.01 mm; when paired with magnetic or optical scale feedback systems, positioning accuracy can reach the micron level, thereby meeting the rigorous demands of high-precision machining and inspection applications.

3.

**Protective Advantages:** The fully enclosed, sealed design effectively prevents the ingress of dust and oil mist, making it suitable for operation in harsh workshop environments. Certain models even meet cleanroom standards, ensuring superior long-term operational stability.

4.

**Maintenance Advantages:** The external centralized lubrication design allows for lubricant replenishment without the need to disassemble the module. Furthermore, select models support maintenance-free operation for up to 30,000 km, thereby reducing downtime and maintenance costs.

5.

**Expandability Advantages:** The module supports modular customization, offering a wide range of travel lengths and the capability for independent control of multiple moving sliders. It is compatible with drive systems from various manufacturers, allowing it to seamlessly adapt to the layout and upgrade requirements of diverse equipment.
