Maximum horizontal load 4 KG
Model: FSKSW-30 screw full-closed module-steel belt
Repeat positioning accuracy: 0.01/±0.02 mm
Customizable stroke: 50-400 mm
Screw outer diameter: φ8 mm
Lead: 01/02 mm
Motor power: 40W/28 steps (motor can be customized)
Maximum speed: 50/100 MM/S

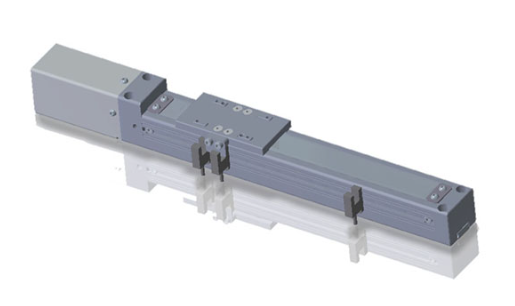

Introducing the Fully Enclosed Stainless Steel Belt Screw Module FSKSW-30, a revolutionary ball screw linear slide designed for the most demanding industrial applications. This robust ball screw actuator redefines efficiency and reliability, offering superior motion transmission where precision and durability are paramount. As a top-tier ball screw linear actuator, it integrates cutting-edge technology to ensure unwavering performance. When your operations require an actuator ball screw that excels in harsh environments, or a precise screw actuator that delivers consistent micron-level accuracy, the FSKSW-30 is your ultimate solution.
The Fully Enclosed Stainless Steel Belt Screw Module FSKSW-30 is an industrial drive component designed for efficient motion transmission. It uses stainless steel to provide excellent corrosion resistance and durability. Its fully enclosed structure effectively prevents the intrusion of external dust, moisture and contaminants, prolongs the life of the equipment and ensures stable operation.
Features include:
Fully enclosed stainless steel housing: Provides comprehensive protection for harsh industrial environments, crucial for any ball screw linear slide.
Belt screw mechanism: Combines belt drive and screw design to achieve high-precision load transmission and energy efficiency – a unique feature for a screw actuator.
Modular construction: Easy to install and maintain, supports multiple configurations to meet different application requirements. This enhances the versatility of our ball screw linear actuator.
Applications include elevator lifting systems, automated production lines and precision transmission equipment, where belt connection fixtures and high-strength design ensure reliable performance.
Pay attention to environmental safety during operation, avoid exposure to explosive conditions, and follow manufacturer guidelines for regular inspections.
The fully enclosed screw actuator module (fully enclosed/sealed lead screw module) is a high-precision linear motion device that converts the motor's rotary motion into precise linear displacement via a ball screw actuator.
Its core feature is a fully enclosed structural design that completely isolates it from dust and impurities. It also offers high rigidity, high load capacity, and micron-level positioning accuracy, making it suitable for industrial applications requiring stringent cleanliness and precision.
Core Features
Dustproof and Sealing
The integrated sealing structure creates a natural dust barrier, specifically designed for cleanrooms and electronics manufacturing environments, significantly extending equipment life. Essential for any ball screw linear actuator in clean environments.
High-Precision Positioning
Repeatability reaches ±0.005mm (C5 ground-grade actuator ball screw), meeting the requirements of semiconductor die bonders and precision measuring instruments. This level of precision is the hallmark of a superior ball screw linear slide.
Stable Performance
The combination of a reinforced rail and precision transmission system achieves high rigidity (for heavy loads) while maintaining a lightweight design, achieving a maximum speed of 1600mm/s. Compact and Efficient.
Integrating core components such as ball screws, guide rails, and servo motors reduces equipment assembly complexity and improves transmission efficiency.
Major Applications
Semiconductor and display panel manufacturing
Used for wafer handling and exposure machine positioning, achieving precision and stability that meet micron-level process requirements.
Precision Electronics Assembly
Micro-component placement and testing are performed in cleanrooms, with a dust-proof design to prevent product contamination.
Lithium Battery Equipment
Precision displacement control for electrode coating and slitting machines improves battery consistency and production capacity.
Medical/Optical Equipment
Positioning testing instruments and laser cutting equipment requiring a high cleanroom environment.
Automated Production Lines
For high-speed, high-load applications such as welding robots and CNC machine tools, achieving three times the efficiency of traditional equipment.
The core advantages of the fully enclosed stainless steel ball screw actuator module FSKSW-30 are reflected in the following aspects:
High-rigidity enclosed structure
The fully enclosed stainless steel housing design achieves IP65 dust and splashproof rating. The four rows of steel balls arranged at a 45° contact angle achieve four-way equal load characteristics, with a rated load of 30 kg and instantaneous shock load resistance of 120 N·m. This makes it a truly robust ball screw linear slide.
Precision motion performance
The rolling friction coefficient is as low as 0.002, with repeatability accuracy of ±0.005 mm. Preload technology eliminates backlash and supports μm-level dynamic response. The enclosed structure effectively isolates external contaminants and ensures stable long-term accuracy, thanks to the precise actuator ball screw.
Corrosion resistance and wide temperature adaptability
The 304 stainless steel is passivated and withstands salt spray corrosion for over 2,000 hours. The operating temperature range is -20°C to 80°C, and the heat sink design enhances thermal stability, ensuring the longevity of your ball screw linear actuator.
Modular integrated design
The standard 30mm width supports multi-axis parallel connection, and pre-installed interfaces are compatible with mainstream servo systems, increasing installation efficiency by 50%. The self-lubricating system has a maintenance interval of 10,000 hours.
Industrial-Grade Reliability
Contactless signal transmission eliminates mechanical wear and tear, making it suitable for cleanrooms and high-humidity environments. Its failure rate is 70% lower than open structures, reinforcing its status as a reliable screw actuator.
