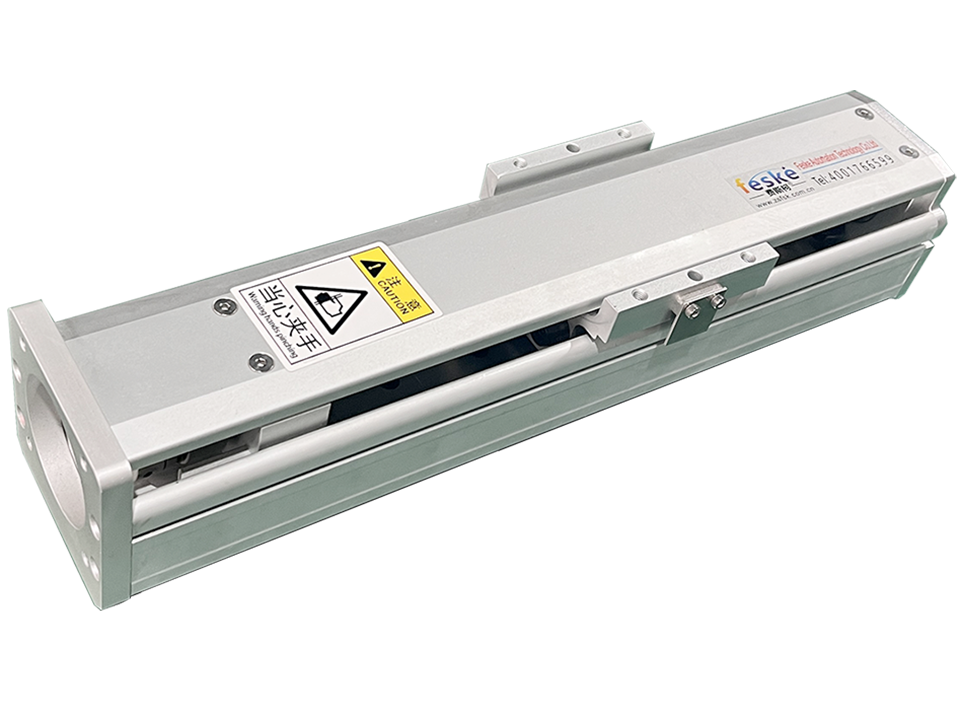

Smooth Ball Screw Semi Enclosed Linear Module

FSKS-75 semi-dense module

Horizontal maximum load: 30KG

Repeat positioning accuracy: ±0.02/0.01mm

Customized stroke: 50-800mm

Screw outer diameter: Ф16MM

Maximum speed: 250/500/1000 MM/S

Lead: 05/00/20 MM

Motor power: 100/200W

Discover our high-precision Linear Module, meticulously designed for the forefront of industrial automation. This advanced Ball screw module integrates a robust semi-enclosed structure with state-of-the-art ball screw drive technology, delivering a stable and highly reliable motion control solution. Engineered for demanding applications, this precision cylinder offers exceptional performance where accuracy is paramount, often outperforming traditional precision hydraulic cylinders in terms of control and efficiency.

Core Design Excellence:

• Advanced Ball Screw Drive System: At the heart of this Ball screw module is a built-in high-precision ball screw transmission mechanism. This system ensures low friction and exceptionally smooth operation, guaranteeing outstanding repeat positioning accuracy (a typical value of ±0.01mm) and impressive high load capacity. It is perfectly suited for integrating with high-load components like the TGB14, positioning it as a leading precision cylinder in its class.

• Semi-Enclosed Protective Structure: The innovative semi-enclosed design of this Linear Module effectively blocks the intrusion of external dust and debris. This critical feature significantly extends the service life of the equipment and drastically reduces maintenance frequency, providing a distinct advantage over open systems and even complex precision hydraulic cylinders.

• Modular Integration: With a compact and intelligent design, this Ball screw module is fully compatible with multi-axis linkage systems, such as XYZ slides. This allows for fast installation and flexible expansion, making it a versatile precision cylinder for evolving automation needs.

Uncompromising Performance Parameters:

• Exceptional Load Capacity: This Linear Module is engineered to support a wide range of medium to high load applications, easily adapting to standardized transmission components. Its robust construction ensures it consistently meets the rigorous demands of industrial use.

• Optimal Operation Characteristics: Experience remarkably low noise and minimal vibration during operation, making this Ball screw module ideal for sensitive and precision working environments where quiet and smooth movement is essential.

• Versatile Applicable Scenarios: This precision cylinder excels in numerous high-demand settings, including precise handling robot arms, advanced semiconductor packaging equipment, efficient automated production lines, and intricate precision testing instruments. It offers a cleaner, more controlled alternative to precision hydraulic cylinders.

Transformative Industry Applications:

This Linear Module widely serves the field of industrial automation, including:

• Production Line Automation: Providing precision positioning for critical assembly machinery and advanced packaging equipment.

• Precision Manufacturing: Facilitating delicate semiconductor wafer handling and intricate optical component processing.

• Detection Systems: Enhancing the accuracy of coordinate measuring machines and sophisticated automated detection platforms.

By optimizing space utilization and significantly reducing maintenance costs, this Ball screw module provides an efficient driving foundation for complex multi-axis collaborative systems. Its superior control and cleaner operation make it a preferred choice over traditional precision hydraulic cylinders for modern automation.

Module Product Packaging Solutions

I. Standard Cardboard Packaging (Routine Transport Scenarios)

Utilizing five-layer corrugated cardboard cartons with a thickness of ≥5mm and a compressive strength of

150 kg/m², this solution is suitable for module products with a single-carton weight of ≤20 kg. The interior

features a fitted EPE foam liner with custom-cut grooves tailored to the module's contours, precisely encasi

ng the main unit, connectors, and accessories; this enhances cushioning and shock-absorption performance

 by 40%. The exterior of the carton is printed with the product model, specifications, weight, moisture-prote

ction symbols, and shipping warning labels. Corner protectors are installed on all four corners, allowing for

stacking up to 6 layers high. This solution meets standard logistics requirements for both land and sea tran

sport, reduces costs by 60% compared to wooden crates, and offers 100% recyclability.

II. Reinforced Wooden Crate Packaging (Precision/Long-Distance Transport Scenarios)

Constructed from imported pine or plywood with a board thickness of ≥18mm, these crates undergo IPPC

fumigation treatment to comply with international export quarantine standards. Interior protection features

 a combination of high-density foam and rubber shock-absorbing pads, maintaining a precise clearance of

5–8mm between the module and the crate walls. Built-in desiccant packets (with a moisture absorption ca

pacity of ≥500g) are included to accommodate extreme transport environments ranging from -20°C to 60°C

 with humidity levels of ≤90%. The crates are fitted with metal lifting rings on the sides and feature dedicate

d forklift slots on the top, supporting a single-crate load capacity of up to 100 kg. This solution is ideal for the

 international shipping of precision servo modules, ultra-long-stroke modules, or high-value orders, maintai

ning a damage rate of less than 0.1%.

III. Customized Packaging Services

For modules with non-standard dimensions, we offer a detachable frame packaging solution featuring adjust

able internal support structures capable of accommodating lengths ranging from 100mm to 6000mm. To fac

ilitate seamless integration with automated production lines, we also offer palletized packaging solutions u

tilizing standard EU pallet dimensions reinforced with stretch wrap; this allows for direct interfacing with

customer warehousing systems, boosting loading and unloading efficiency by 30%. All packaging shipments

 include a Product Certificate of Conformity, Inspection Report, and Installation Manual, ensuring full tracea

bility throughout the entire product lifecycle.
