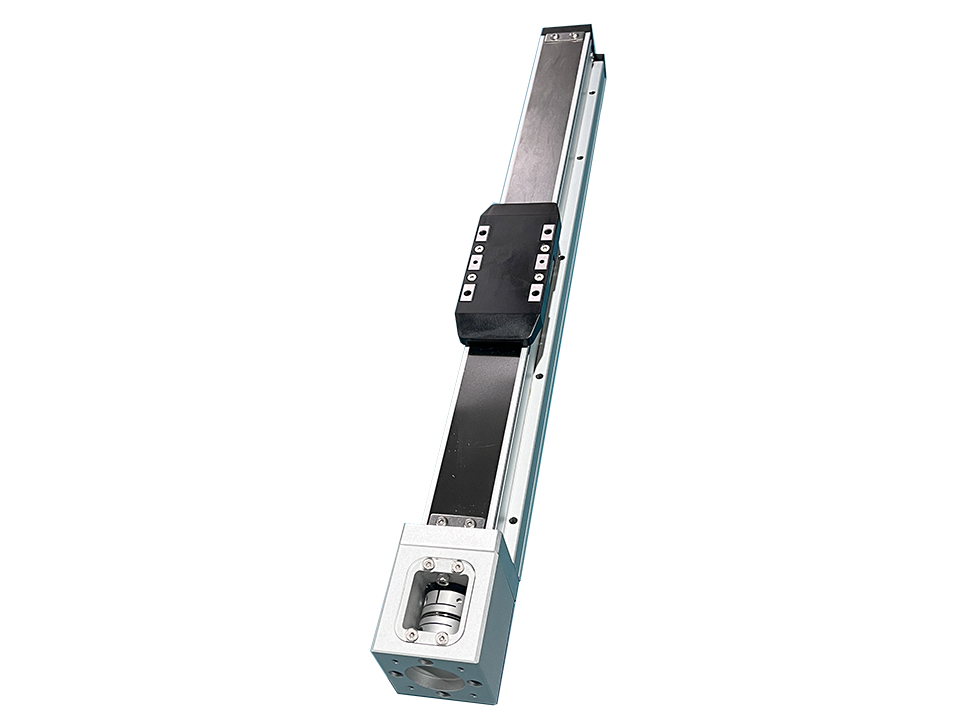

Waterproof And Oil-proof Sealed Embedded Module Slide GCH-40

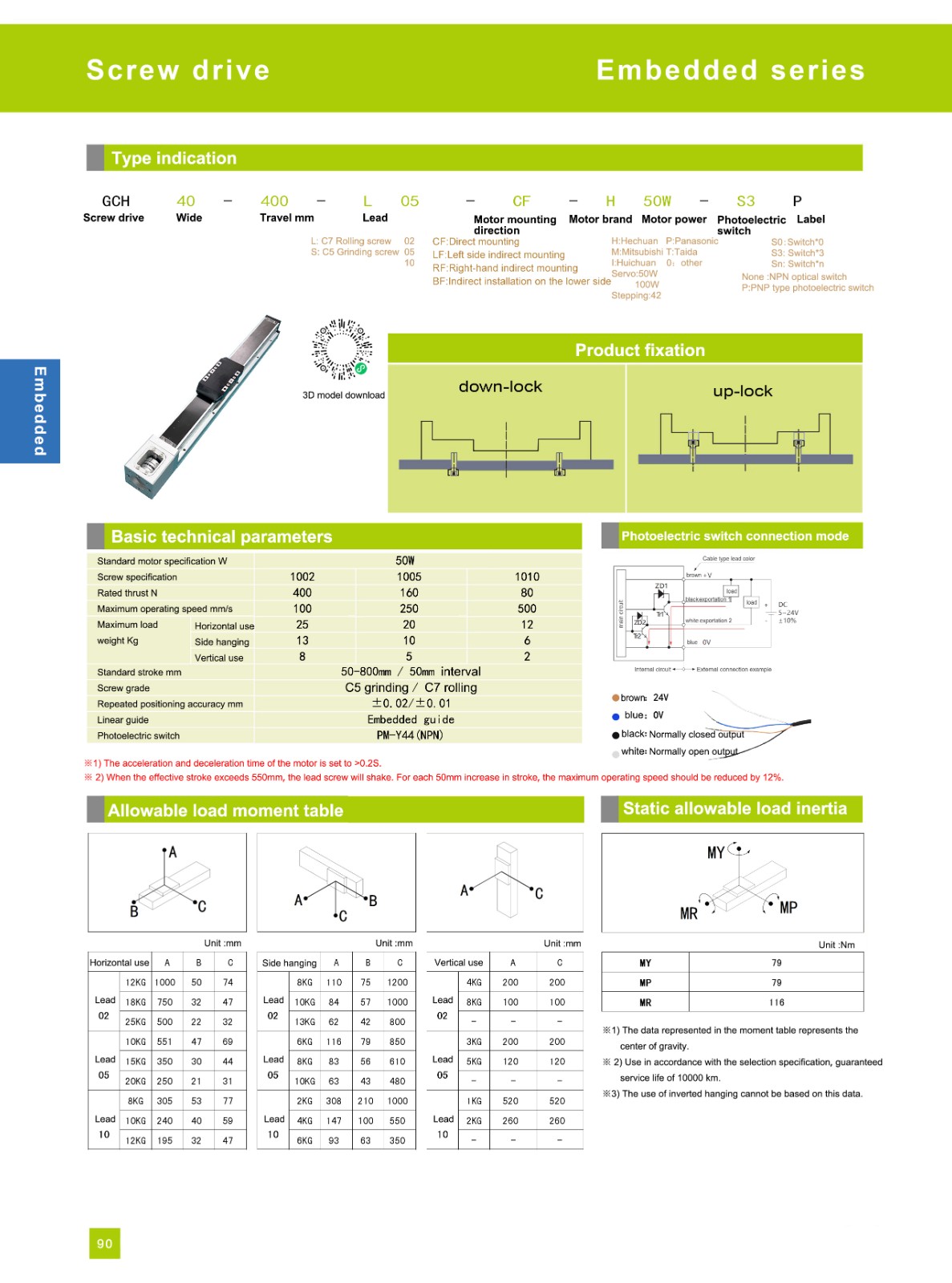

Module：GCH-40 Maximum horizontal load: 25KG.GCH-40 embedded full-closed module.Repeat positioning accuracy: +0.01/+0.02 mm

Maximum horizontal load: 25KG

Model: GCH-40 embedded full-closed module

Repeat positioning accuracy: +0.01/+0.02 mm

Customizable stroke: 50-800mmScrew outer diameter: 10 mm

Lead: 02/05/10mm

Motor power: 50W (motor can be customized)

Maximum speed: 100250V500 MM/S

embedded module

embedded module slide

It is an embedded modular component designed for harsh industrial environments. Its core features

and applications are as follows:

🔧 Core Features

‌IP67/IPX7 grade protection sealing design‌

Using silicone sealing ring (O-ring) and precision shell structure, it is completely dustproof and

waterproof. It can be immersed in 1 meter water for 30 minutes without leakage. It can withstand oil

erosion and is suitable for humid, dusty or oily environments‌67.

‌Embedded compact structure and modular sliding installation‌

• Support PCB embedded installation (Embedded), directly integrated into the device, saving space

and improving system integration‌89;

• Modular sliding design (Slide) is convenient for quick plug-in and maintenance, and is adapted to

the efficient deployment requirements of automated production lines

Tags:

embedded module embedded module slide waterproof embedded module Micro-Positioning module
