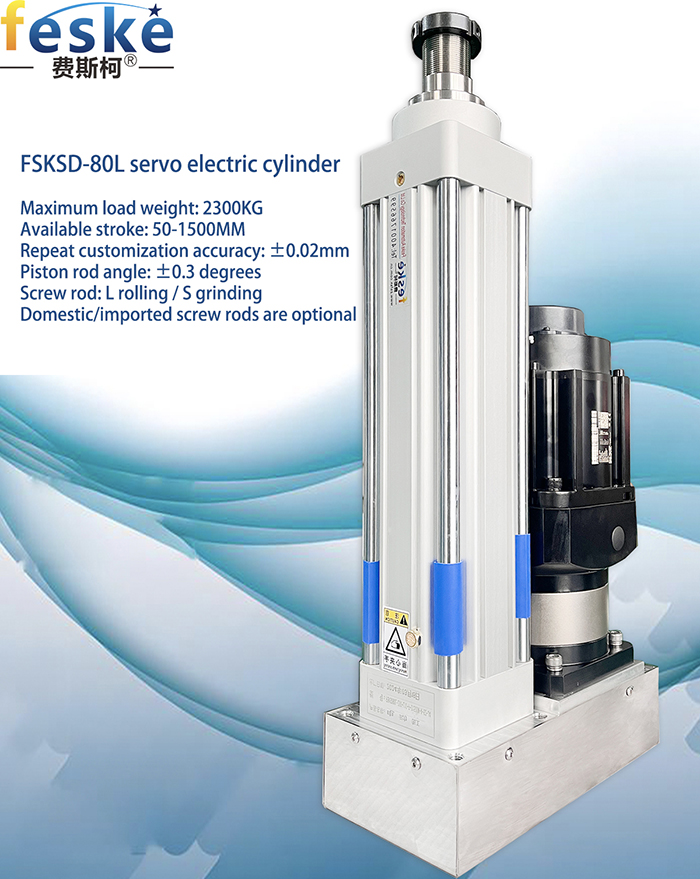

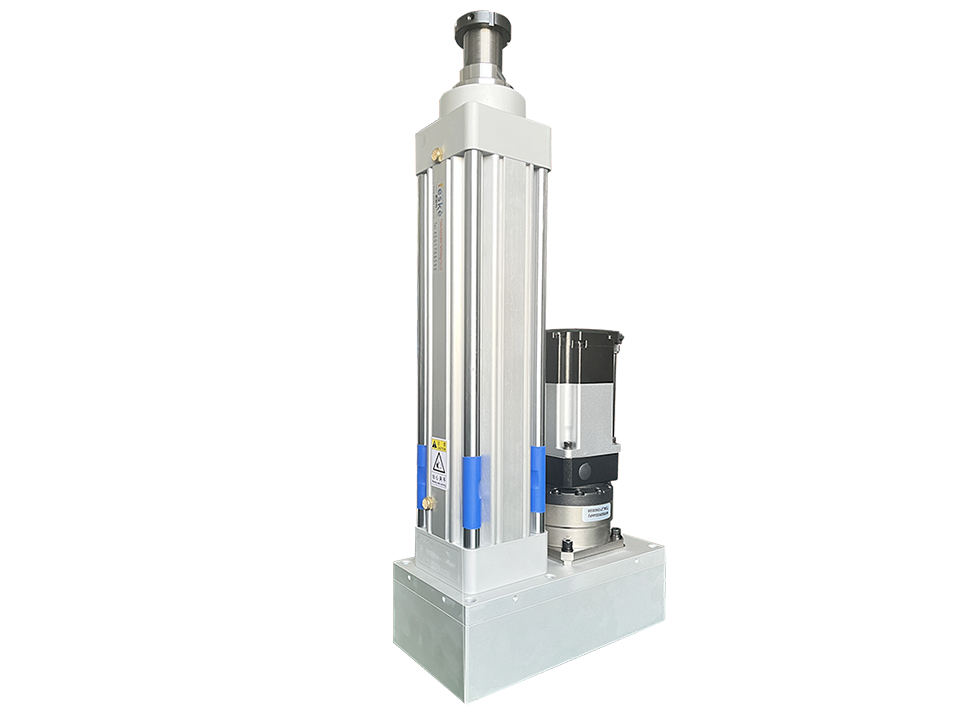

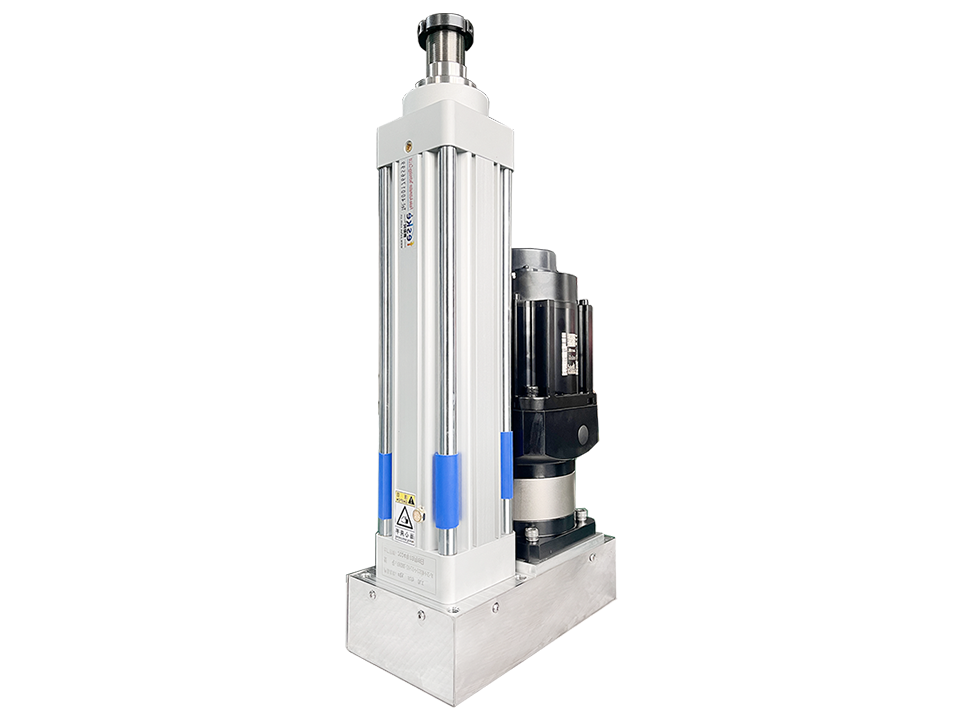

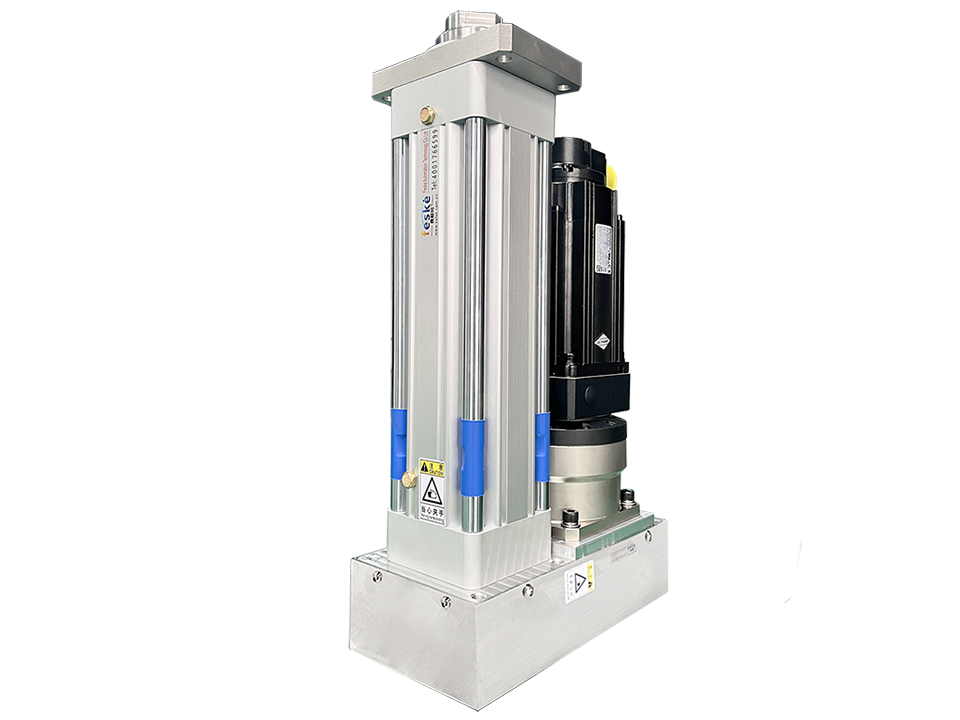

FSKSD-80L servo electric cylinder
Maximum load weight: 2300KG
Available stroke: 50-1500MM
Repeat customization accuracy: ±0.02mm
Piston rod angle: ±0.3 degrees
Screw rod: L rolling / S grinding
Domestic/imported screw rods are optional
The working principle of the electric cylinder is to use electricity as the direct power source, and adopt various types of motors (such as AC servo motor, stepper servo motor, DC servo motor) to drive different forms of screws (or nuts) to rotate, and convert the spiral motion between the components into the linear motion of the nut (or screw), and then the nut (or screw) drives the cylinder or load to do reciprocating linear motion.
Electric cylinders are versatile linear actuators widely used in industrial automation. Their main applications include:
1. Precise positioning in factories – assembly lines, welding robots, and material handling systems.
2. Packaging – adjusting conveyor belt height and product pressing mechanisms.
3. Medical – adjusting the positioning of hospital beds and operating tables.
4. Transportation – controlling train doors and aircraft cargo loading systems.
5. New energy – solar panel tracking and wind turbine blade adjustment. Electric cylinders replace hydraulic/pneumatic systems with cleaner, programmable electric motion, providing millimeter-level accuracy and IoT connectivity, enabling smart manufacturing.
The FSKSD-80L electric cylinder is a closed-loop precision electric cylinder with the following key advantages: High-precision closed-loop control; the electric cylinder actuator uses a closed-loop feedback system to achieve micron-level positioning accuracy, making it suitable for industrial applications with demanding motion control requirements. The electric cylinder actuator's intelligent algorithm compensates for mechanical errors in real time, ensuring consistent and repeatable positioning.
Durability and Reliability of Electric Cylinder Actuators: German-made gear reduction mechanisms (e.g., products similar to Eberhard Bauer) offer high torque density and long service life, making electric linear actuators suitable for high-intensity, continuous operation. A 24V DC motor in the hydraulic linear actuator further improves energy efficiency.
Modular Integration Capability of Electric Cylinder Actuators: Electric linear actuators can be seamlessly integrated with various industrial control systems (e.g., BorgWarner's electromechanical modules) and are compatible with digital management platforms, facilitating integration into automated production lines.
Environmental Adaptability of Electric Cylinder Actuators: The sealed construction of electric linear actuators resists harsh working environments such as dust and oil contamination, and its thermal management system (drawing on John Deere engine technology) ensures stable operation over a wide temperature range.
Ease of Maintenance of Electric Cylinder Actuators: Standardized interfaces and modular components significantly improve the efficiency of fault diagnosis and parts replacement, thereby reducing downtime.

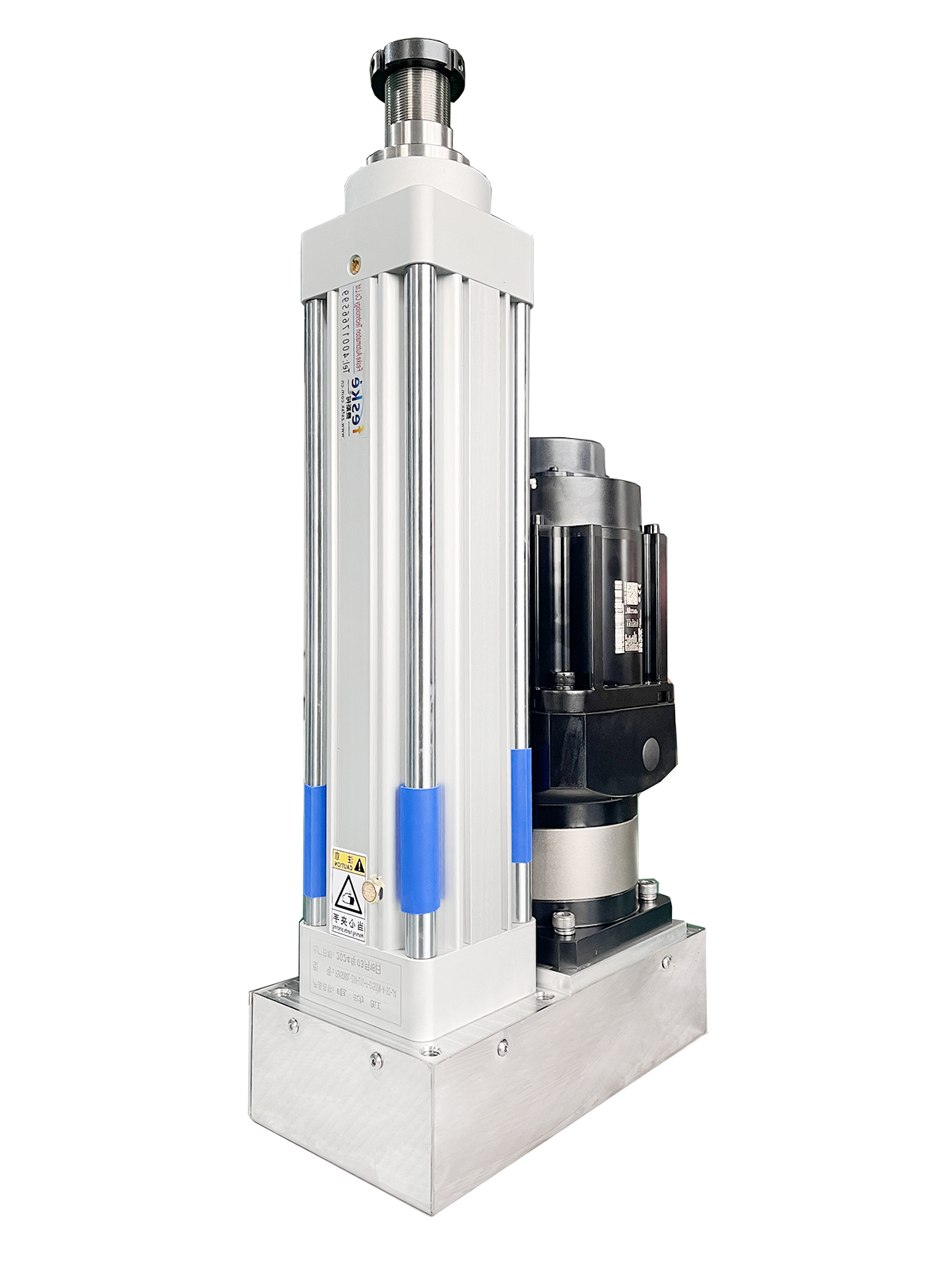

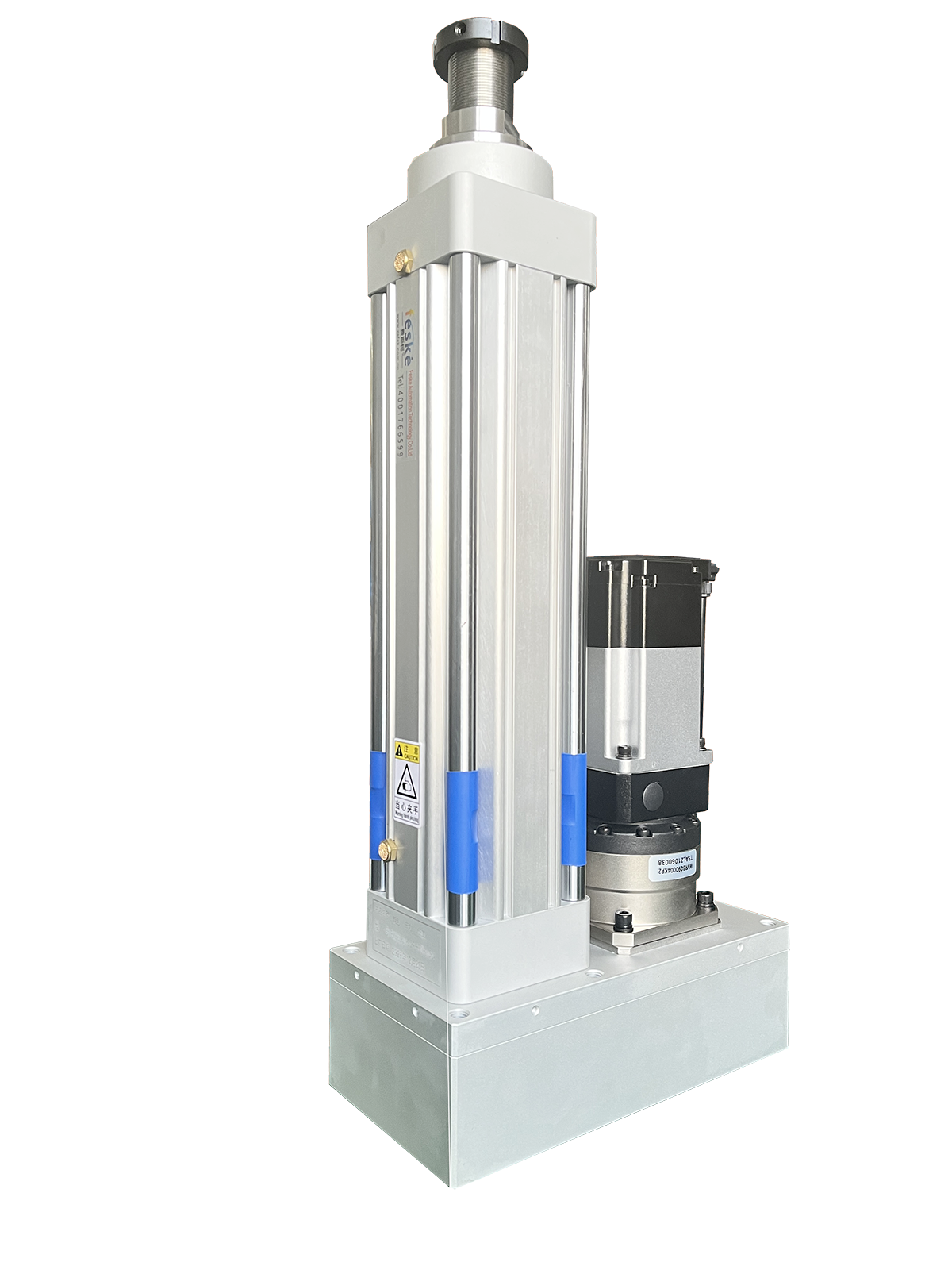

The FSKSD-80L is an industrial-grade intelligent electric cylinder primarily used for high-precision linear
motion control. This product combines servo motor drive with precision ball screw technology, providing
precise adjustment of position, speed, and thrust under closed-loop control.
Core Technical Features:
* **Closed-Loop Precision Control:** An integrated high-resolution encoder forms a closed-loop system,
providing real-time position feedback. Its repeatability is typically ±0.02mm or even higher.
* **Multi-Parameter Programmable:** Users can program the cylinder's stroke, velocity, acceleration, and
torque/push function via a controller or PLC.
* **High Durability Design:** The "80L" in the model name usually indicates a high load capacity (e.g., rated
thrust or size). The product uses industrial-grade materials, supports 24/7 high-frequency operation, and
offers advantages such as long lifespan and low maintenance costs.

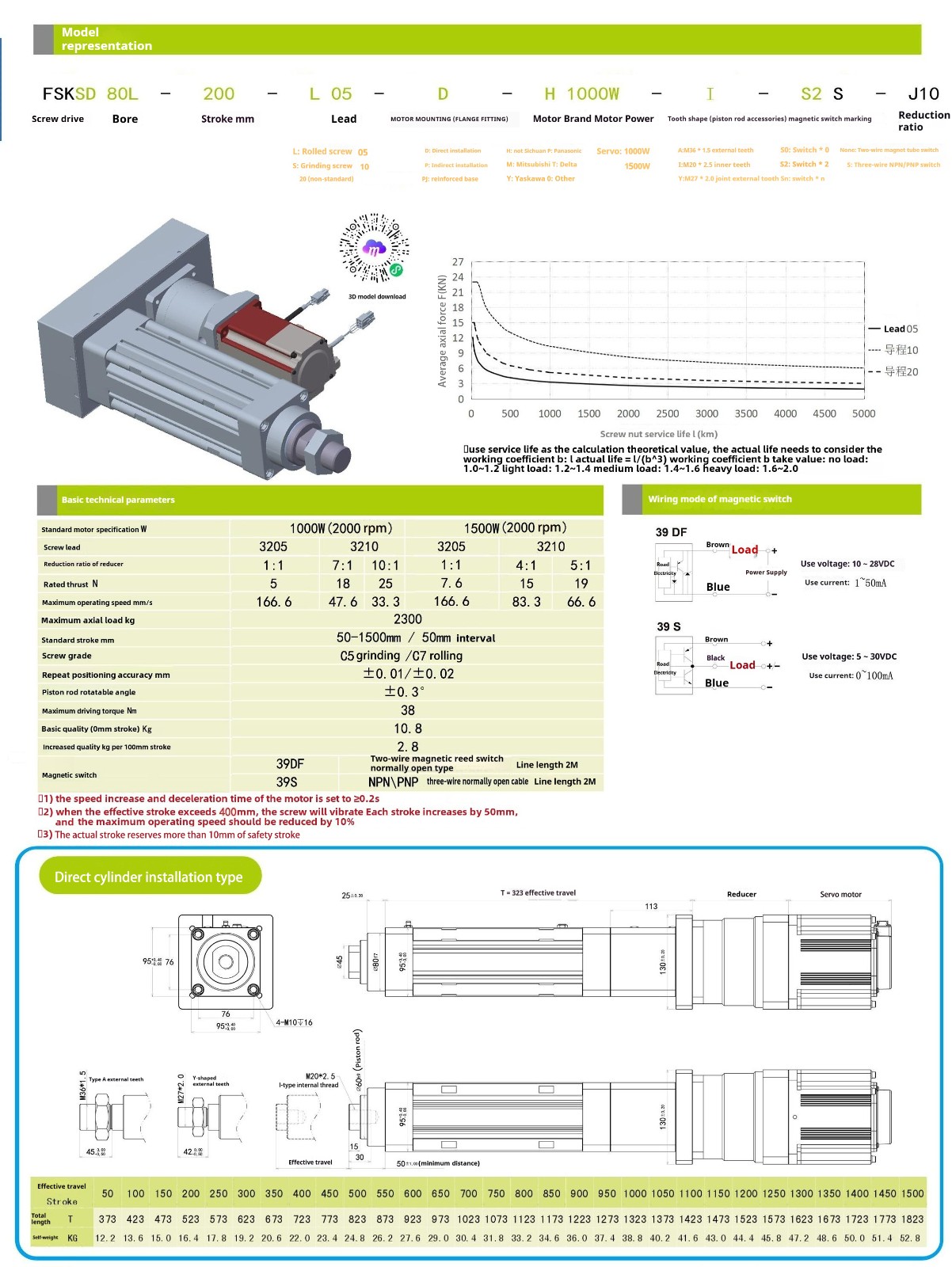

**Key Specifications:**
* **Drive Method:** Primarily uses a precision ball screw to convert rotary motion into linear motion.
Thrust Range: Based on similar 80-series specifications in the industry, the maximum thrust can range from
several hundred kilograms to several tons, depending on the power of the matching servo motor.
Protection Rating: Typically equipped with IP65 or higher dust and water resistance ratings, suitable for
harsh industrial environments.
Main Application Scenarios: Due to its ability to achieve precision movements that pneumatic and hydraulic
cylinders cannot, the FSKSD-80L is widely used in the following fields:
Precision Press Fitting: Such as interference fits of bearings and components, allowing real-time monitoring
of press force and displacement curves.
Automated Production Lines: In the smart factories of 2026, it is commonly used for feeding, picking, and
multi-station synchronous operations.
Simulation and Experimentation: As mentioned above, six-degree-of-freedom platform simulation, precise
valve adjustment, and laboratory precision displacement control.
