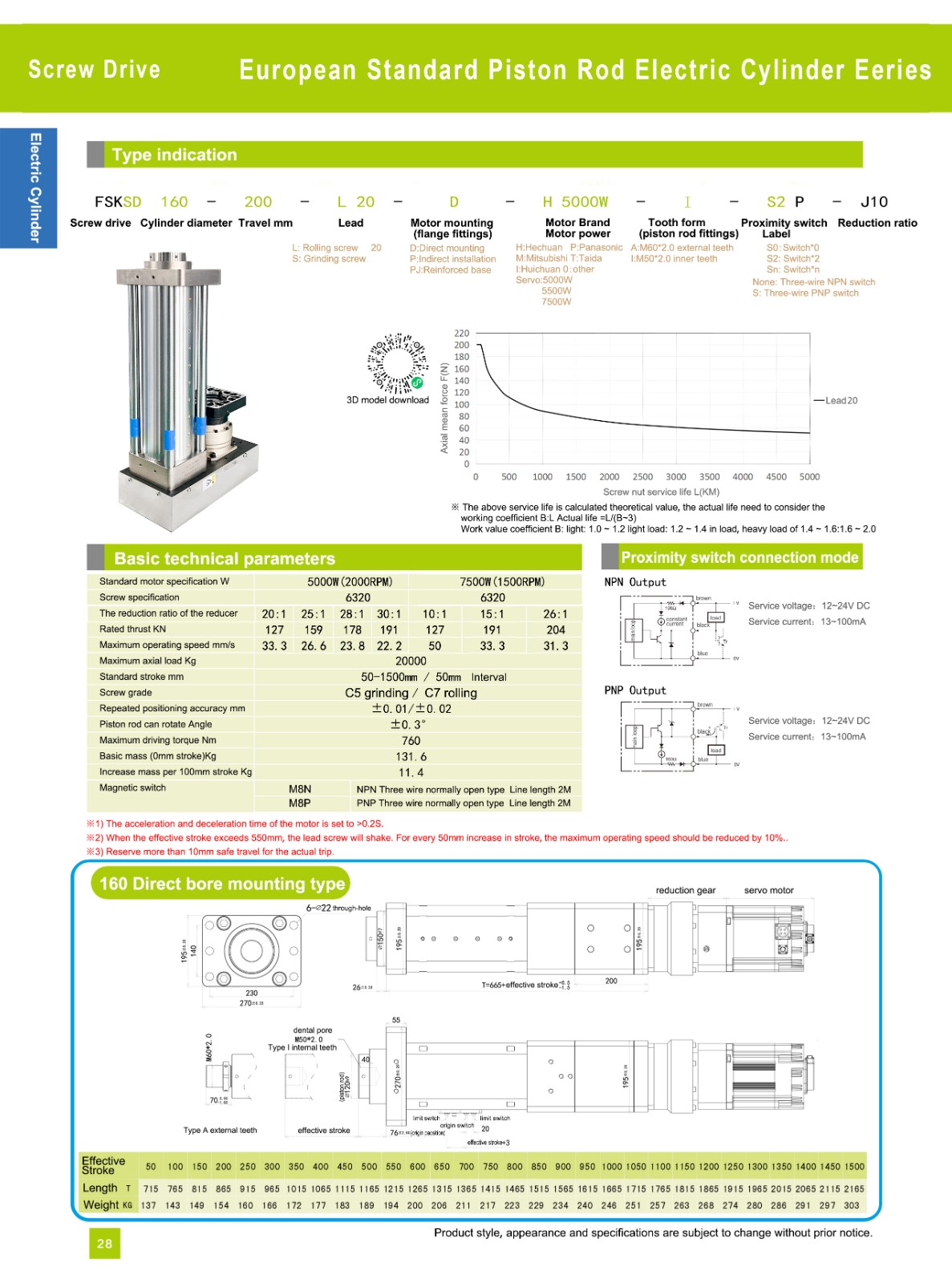

Maximum thrust: 20T
Repeat positioning accuracy: ±0.02 mm
Customizable stroke: 50-1500mm
Screw outer diameter: φ63 mm
Lead: 20 mm
Motor power: 5000W (motor can be customized)
Maximum speed: 50 MM/S

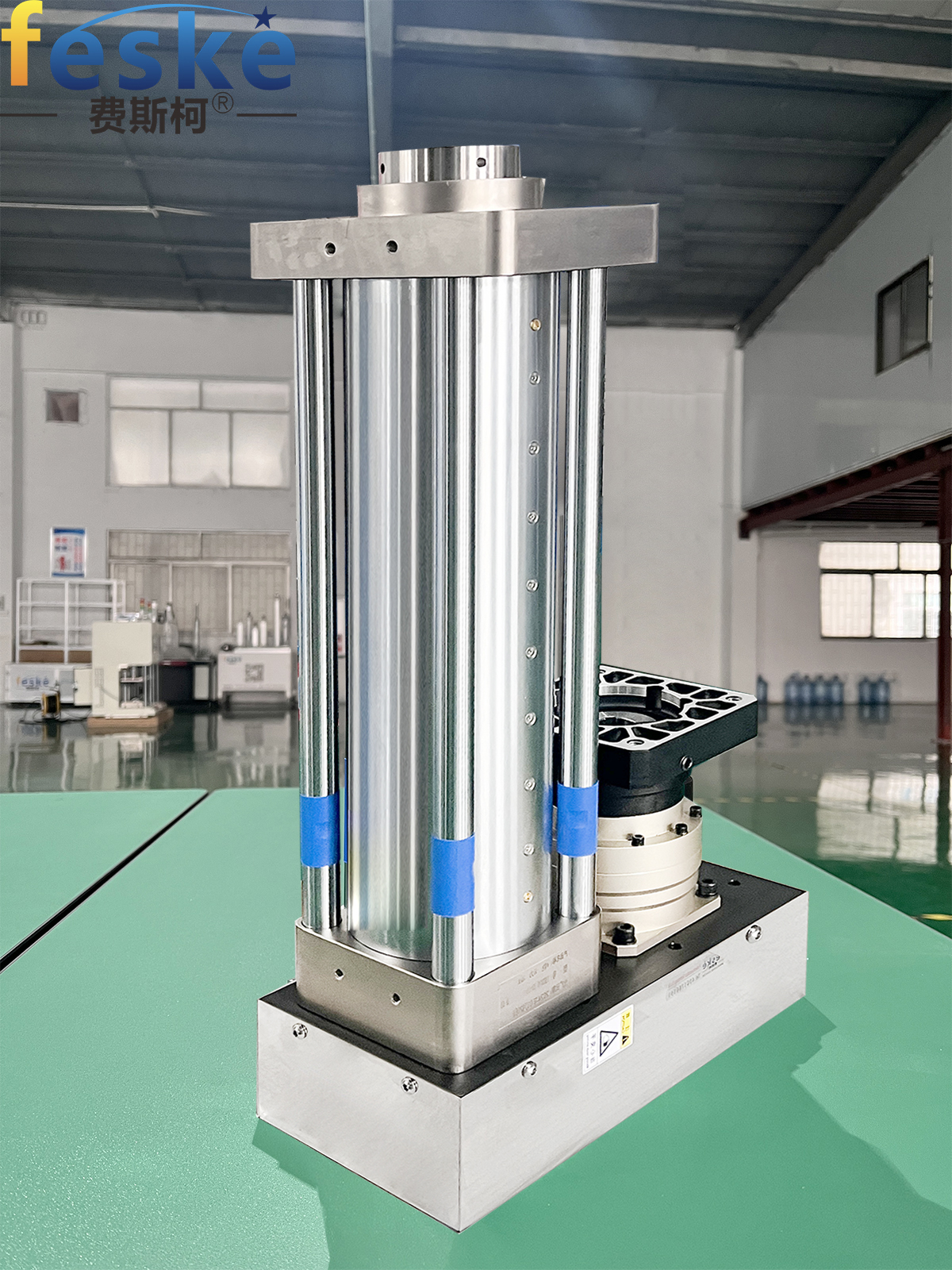

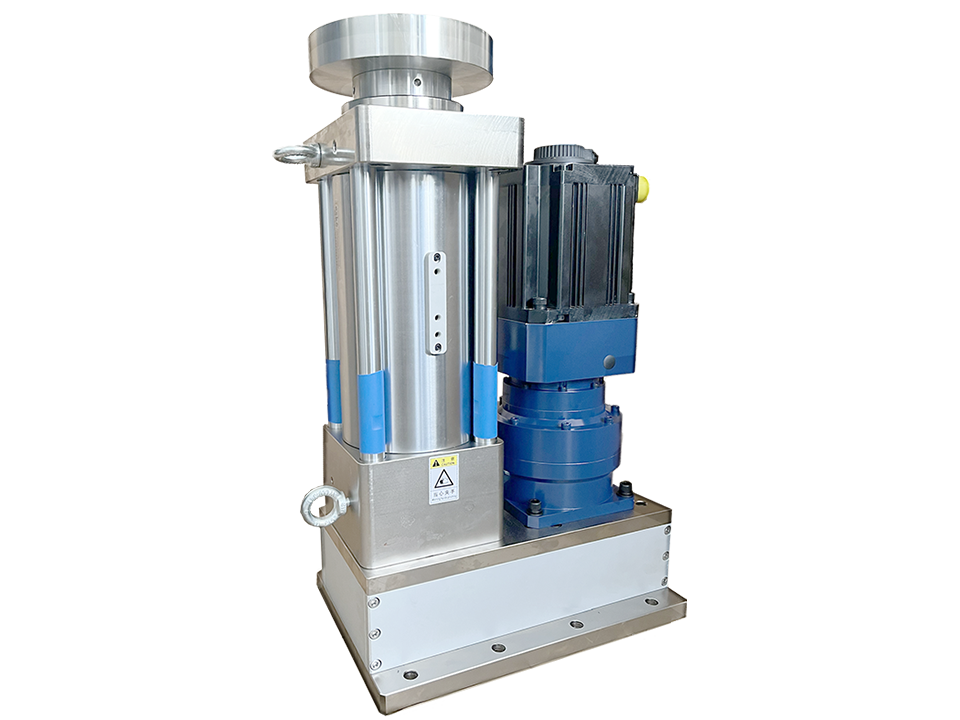

Electric telescopic cylinder: intelligent drive, precise telescopic expansion
Electric telescopic cylinder (also known as telescopic cylinder, linear actuator) is a mechanical device that uses electricity as a driving source. The electric telescopic cylinder drives the screw/nut pair or gear rack mechanism through the rotation of the motor to convert the rotary motion into linear reciprocating motion. The electric reciprocating machine integrates the motor, reducer, transmission mechanism and control system. The reciprocating machine can achieve high-precision and high-efficiency automatic telescopic control. The reciprocating machine is widely used in industry, home, medical, agriculture, security and other fields.
Key advantages of the Electric Reciprocating Machine Telescopic Cylinder FSKSD-160 include:
High Rigidity and High Feed Force
An optimized cross-section design provides excellent force transmission and torque absorption, making
it suitable for high-load applications.
Long-Life Guide System
Internal, double-sided ball bearing ring guides are protected by a permanent magnetic stainless steel
cover strip, significantly enhancing durability.
Various Specifications
Six standard and four wide models are available, ranging in width from 30mm to 220mm, with maxim
um travels of 2.5m (screw-type) or 8.5m (toothed belt type).
Innovative Technology
Independently developed guide technology and a magnetic stainless steel cover strip solution provide a
balance of protection and operational accuracy.
Flexible Adaptability
Can be integrated into mechatronic automation systems, such as gripping and assembly, and supports a
variety of motor and drive configurations.
Electric Reciprocating Machine Telescopic Cylinder is a device that converts rotating motor motion into
linear reciprocating motion. Its core application scenarios include:
1. Heavy equipment and construction machinery
Dump truck/dump truck: Used for lifting cargo containers, replacing traditional hydraulic cylinders, with
higher energy efficiency and precision.
Construction Equipment: Such as forklifts and bulldozers, which can provide up to 100,000 pounds of
thrust and 10 meters of travel
2. Industrial automation and precision manufacturing
Electrochemical Machining (PECM): Used in the manufacture of high-precision metal parts, such as aero
space and medical equipment components
3.
Linear module integration: Combined with the PLC system to achieve precise positioning on the automa
ted production line
Other areas
Material handling: Such as cranes and lifting platforms, supporting semi-automatic operation.
Environmental protection equipment: garbage truck compression device, etc., to reduce hydraulic oil
pollution.
This technology achieves energy saving and low maintenance through electrified design (such as ball
screw transmission), and gradually replaces hydraulic systems
An electric reciprocating telescopic cylinder is an electromechanical actuator that converts rotary
motion into linear motion, achieving precise telescopic control via a motor-driven lead screw or nut.
Its core advantages lie in high precision, high rigidity, and environmental adaptability, making it widely
applicable in the following scenarios:
1. Industrial Automation
* Assembly and Inspection: Provides micron-level positioning accuracy for precision component assemb
ly or measuring tool movement, ensuring product consistency.
* Material Handling: Overcomes the inertia of heavy objects, achieving stable gripping and stacking,
reducing manual labor intensity.
2. Specialized Operations
* Welding and Spraying: High-rigidity structure withstands welding stress, precisely controlling the spra
y gun trajectory and improving coating uniformity.
* Laser Cutting: Fast-response motor drive enables high-speed cutting, improving processing efficiency.
3. Logistics and Construction
* AGVs (Automated Guided Vehicles): Compact design optimizes space utilization for automated cargo
handling and warehouse management.
* Construction Machinery: Such as the telescopic boom of a concrete pump truck, providing stable pow
er support.
4. Emerging Fields
Humanoid Robots: Lightweight, multi-segment telescopic structure enables high-frequency, stable move
ment of the lifting module.
Packaging Production Lines: High-speed, precise control completes tasks such as sealing and palletizing,
adapting to flexible production needs.
The accuracy of the slide module directly affects the quality of the product.
Using multi-axis electric cylinders reduces labor costs
Widely used in laser welding, laser cutting, glue coating machines, spraying machines, punching machines, dispensing machines, small CNC machine tools, engraving and milling machines, plotters, cutting machines and other conveyors, sorting equipment, applicable testing equipment, educational equipment, etc.
