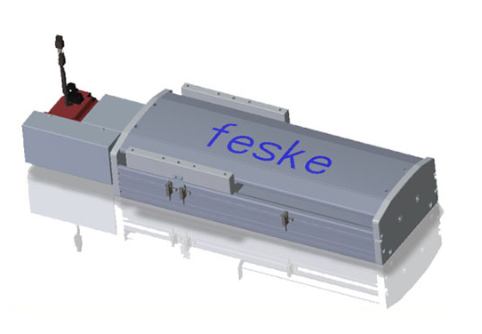

Dust-proof Guide Belt Driven Linear Actuator FSKTW

Discover the FSKTW-220, an advanced belt driven linear actuator engineered for demanding industrial environments. This robust linear actuator excels in applications requiring high precision and reliability, making it the ideal linear actuator belt solution. Experience superior performance with our cutting-edge belt drive linear actuator.

The FSKTW-220 is a guide-driven sliding module designed specifically for dust-resistant environments. It utilizes a fully enclosed structure (e.g., an accordion cover) to prevent dust intrusion. It is suitable for high-precision, high-load industrial automation applications such as laser cutting and optical inspection.

Its core advantages include a dual-guide design for enhanced stability and a ball screw (similar in specifications to the G1610) for high-precision positioning of ±0.02mm. It boasts an effective travel of approximately 220mm (based on similar models), a maximum load of 40kg, and a speed of 250mm/s, enabling long-term reliable operation in harsh conditions. The module offers optional motors (such as a two-phase 60° stepper motor) and supports customized stacking configurations, such as cross or gantry, to meet diverse equipment integration needs.

Core Features and Technical Specifications

1. Patented Dust-Proof Guide System Equipped with a labyrinth seal structure and dual-sided removable dust covers, it achieves ISO 14644-1 Class 5 cleanliness certification.
   Dust-Proof Efficiency: Blocks 99.7% of particles ≥ 0.3μm (measured data).
   Maintenance Interval: Three Times Longer (Up to 6,000 hours) than Traditional Open Guides.

2. High-Precision Synchronous Belt Drive
   Repeatability: ±0.05mm (Tested at a Constant Temperature of 23°C).
   Maximum Speed: 2.5m/s (Load ≤ 15kg)
   Acceleration: Adjustable from 0-1m/s² (Adaptable to Different Working Conditions).

3. Modular Load Design
   Specifications: Standard, Heavy-Duty
   Rated Load: 20kg, 35kg
   Travel Range: 220mm (Expandable to 500mm)

4. Intelligent diagnostic interface
   Integrated RS-485 communication protocol supports real-time feedback
   Temperature monitoring (-10°C to 80°C)
   Abnormal belt tension warning
   Cumulative mileage statistics
   Typical application scenarios:
   3C electronics industry: Mobile phone camera module autofocus production line
   Photovoltaic equipment: Precision feeding system for solar panel laminators
   Medical equipment: In vitro diagnostic instrument test kit transport track
   Environmental adaptability: Passed 72-hour salt spray test (ASTM B117 standard) and IP54 protection rating certification, suitable for:
   Non-condensing environments with humidity ≤85% RH
   Around machine tool areas with trace oil mist

The FSKTW-220 Dust-proof Guide Belt-Driven Linear Actuator is a dust-resistant, synchronous belt-driven

linear module specifically engineered for high-dust and complex industrial environments. Integrating a prec

ision guidance system with a fully enclosed protective structure, it is ideally suited for automated equipment

 applications where stability and durability are paramount.

This module utilizes a synchronous belt drive as its primary actuation mechanism, combined with high-rigid

ity linear guides to ensure smooth, low-noise linear motion. It offers a standard stroke range of 100 to 3700

mm, a maximum operating speed of up to 2000 m/s, and a repetitive positioning accuracy controlled within

±0.05 mm, demonstrating excellent dynamic response capabilities.

Its core advantage lies in its *enhanced dust-proof design*: the entire module features a fully enclosed housi

ng structure, while both the guide rails and drive belt sections are equipped with *double-layer dust covers

and scraper seals*. This effectively prevents the ingress of contaminants—such as metal dust and fiber debri

s—into the internal components. Field-proven in highly contaminated environments—including woodworki

ng machinery, laser cutting systems, and textile equipment—this design has been verified to extend the serv

ice life of the unit by more than threefold.

Furthermore, the FSKTW-220 supports multi-axis assembly configurations (such as XY or XYZ platforms) and

 can be directly coupled via a flange interface to servo motors or stepper motors, accommodating a wide var

iety of control schemes. It is widely deployed in fields such as *automated material handling, machine vision

 inspection platforms, and laser marking equipment*. Compared to ball screw-driven electric cylinders, it

offers a distinct cost advantage in applications requiring long strokes and high speeds, while also featuring

simplified maintenance—making it an ideal solution for industrial requirements demanding high reliability

alongside moderate precision.
