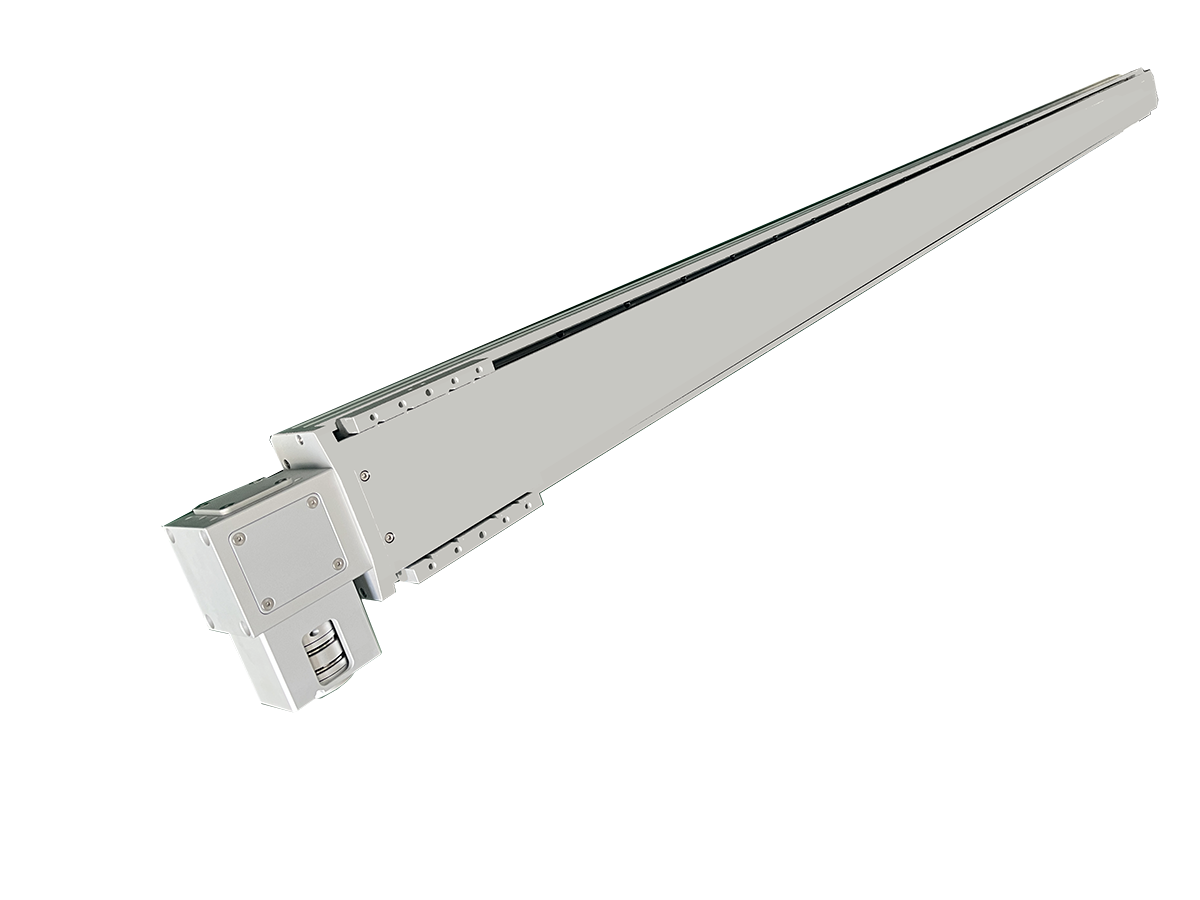

Fully Enclosed Automatic Production Intelligent Transmission Slide Table

n modern industrial automation, the demand for precise, reliable, and robust motion control is paramount. Our advanced FSKTW-136 belt driven linear actuator stands at the forefront, offering unparalleled performance. As a premier electric linear actuator, it's engineered to excel where others fail, providing exceptional control for critical applications. This sophisticated electromechanical linear actuator isn't just a component; it's a solution designed to elevate your operational efficiency.

The Fully Enclosed Automatic Production Intelligent Transmission Slide Table FSKTW-136 is a high-precision intelligent transmission slide table module designed for harsh industrial environments. Its core features include:

1. Fully Enclosed Protective Structure: A fully enclosed protective cover (such as an accordion cover or metal casing) similar to that used on water jet cutters completely isolates the transmission system from dust, liquids, and debris, ensuring the stable and long-lasting operation of the internal ball screw/guide rail in a clean environment. Its sealing meets the high standards of sterile environments required by pharmaceutical machinery and other applications.

2. Precision Transmission and Intelligent Control:

• High-Precision Positioning: Equipped with a servo/stepper motor drive, it achieves repeatability of ±0.02mm (based on the same series standard), making it suitable for high-precision applications such as optical inspection and precision assembly.

• Intelligent Feedback: Integrated sensors monitor motion status in real time, enabling closed-loop control and data traceability.

3. Enhanced Load and Stroke Adaptability:

• Load Capacity: The optimized dual-guide structure provides high-rigidity support, with a maximum load of 40 kg (see similar models).

• Stroke Configuration: Supports a standard stroke of 136 mm (see model number), with customizable extended strokes available to accommodate compact automation equipment layouts.

4. Durable Design for Harsh Environments:

• Pollution Prevention and Noise Reduction: The fully enclosed design significantly reduces cutting debris splash and noise pollution (see enclosed solutions for water jet cutting machines).

• Long-Lasting Lubrication: The built-in automatic lubrication system precisely delivers lubricant (with control accuracy down to 0.01 seconds), significantly reducing wear on transmission components and extending service life in corrosive environments such as chemical and waste treatment plants.

5. Integrated Application Scenarios:

• Widely used in: New energy production lines: High-precision positioning stations in automated soft-pack battery packaging lines; Pharmaceutical and food equipment: Material conveying and packaging systems in sterile environments; Environmental protection equipment: Key pollution prevention processes such as closed fermentation systems;

• Scalability: Supports cross-stacked or gantry-style multi-axis combinations to meet complex automation requirements.

This module, integrating a fully enclosed structure with intelligent transmission technology, provides a reliable solution for industrial scenarios requiring high cleanliness and stability. For those seeking a high speed linear actuator or a reliable linear actuator belt solution, the FSKTW-136 offers unmatched precision and durability.

The FSKTW-136 Fully Enclosed Automatic Production Intelligent Transmission Slide Table is a highly integrat

ed, intelligent linear motion module designed specifically for modern automated production lines. Character

ized by high precision, high rigidity, and fully enclosed protection, it is ideally suited for industrial environme

nts with stringent requirements regarding environmental cleanliness, operational stability, and positioning

accuracy.

I. Core Structure and Technical Features

1.

Fully Enclosed Design

Utilizing an integrated aluminum alloy profile housing combined with a built-in sealed guide rail structure,

the unit effectively isolates contaminants such as dust, oil residue, and metal debris. Its protection rating

exceeds IP54, making it particularly suitable for clean environments found in electronics manufacturing,

pharmaceutical packaging, and food processing.

2.

High-Precision Transmission System

Equipped with a precision ball screw or planetary roller screw (depending on configuration), and paired

with a servo motor for closed-loop control, the system achieves a repetitive positioning accuracy of ±0.01

mm. With a maximum operating speed of up to 1000mm/s, it meets the demands of high-speed, high-pre

cision production.

3.

Intelligent Drive and Control

Features a built-in intelligent servo drive unit that supports various communication protocols (e.g., EtherCAT

, Modbus). It integrates seamlessly with PLCs or host control systems to enable intelligent functions such as

remote monitoring, automatic parameter adjustment, and fault diagnostics.

4.

Modularity and Ease of Integration

Offers standard mounting interfaces and multi-axis splicing capabilities, supporting multi-axis combinations

 (X/Y/Z). This facilitates rapid integration into equipment such as vision inspection systems, assembly lines,

and material handling systems, thereby reducing production line development cycles by over 30%.

II. Typical Application Scenarios

Intelligent Manufacturing Lines: Serves as a core execution unit for workpiece transfer and workstation switc

hing, enabling fully automated, continuous production.

Vision Inspection Equipment: Supports camera platforms with precise motion control to perform visual defe

ct inspections on PCBs, display screens, and precision components.

Pharmaceutical and Food Automation: Ensures hygiene and safety in processes such as aseptic filling, pharm

aceutical sorting, and food packaging, thanks to its silent operation (≤60dB) and oil-free characteristics.

Non-standard Automation Equipment: Widely utilized in customized machinery—such as systems for laser

processing, dispensing, and pressing—to replace traditional pneumatic slides, thereby enhancing control

flexibility and process consistency.
