high Speed Linear Actuator​ With Semi-sealed Belt Module

Maximum horizontal load 12KG

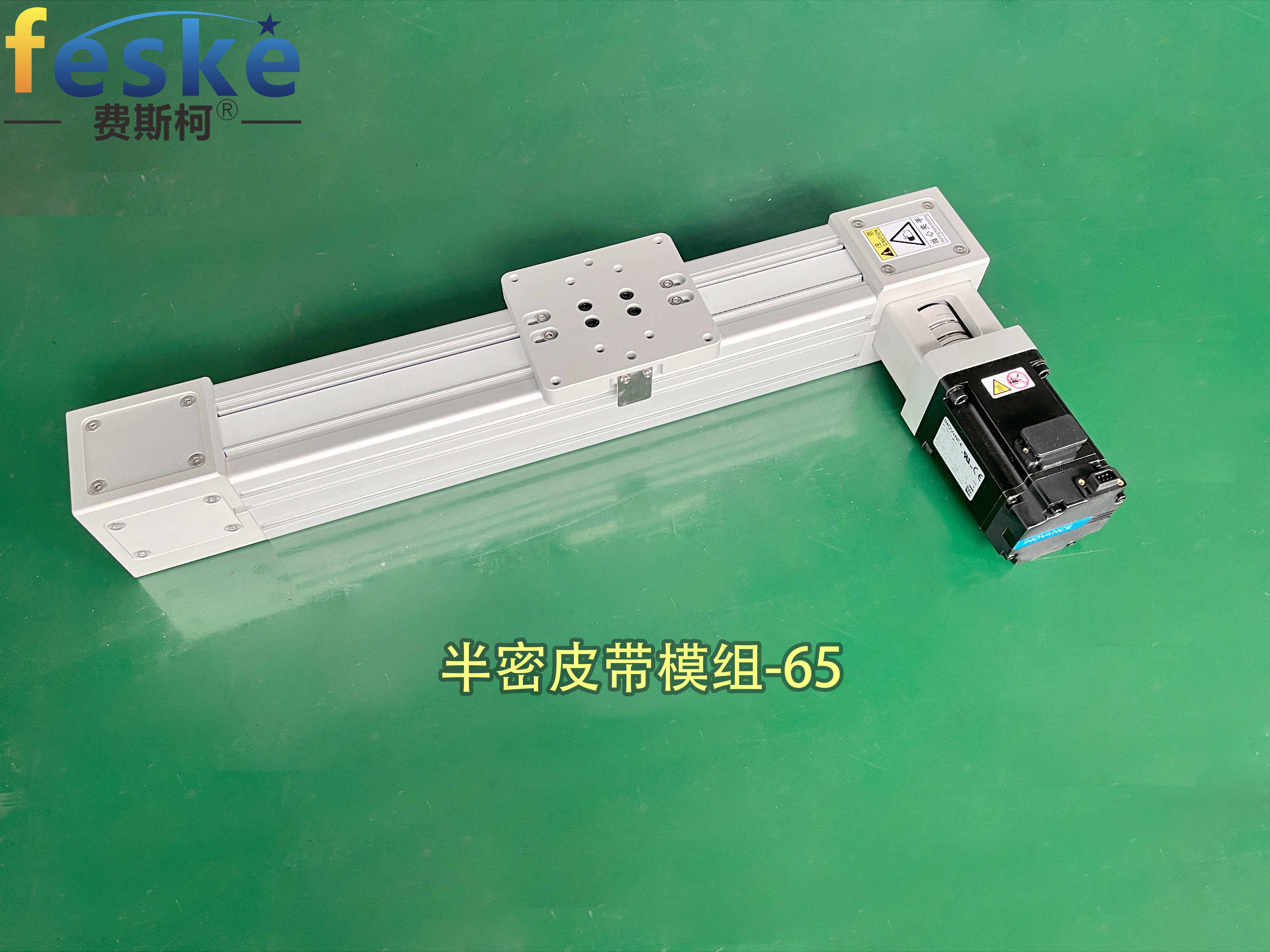

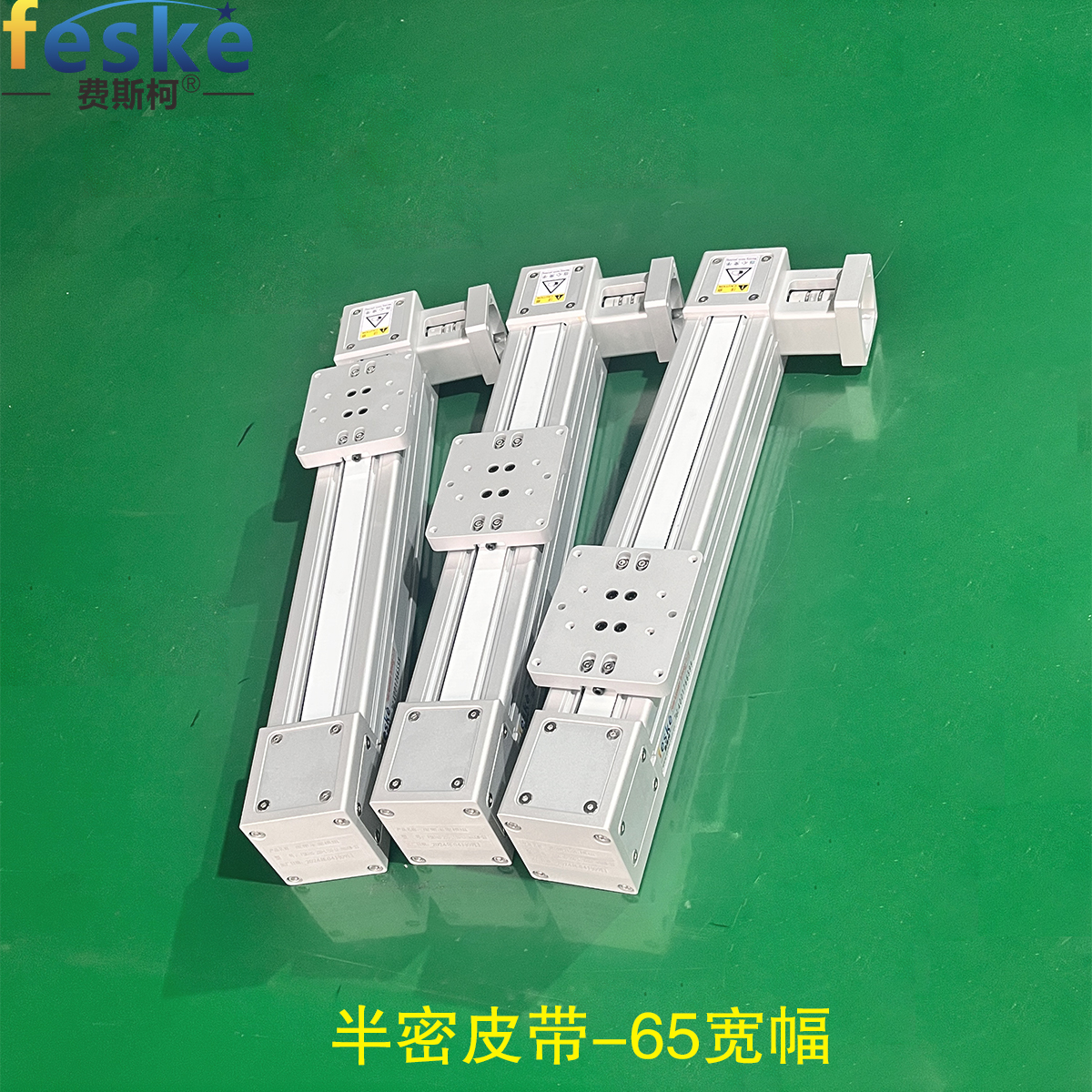

Model: FSKT-65

Semi-dense belt module

Repeat positioning accuracy: ±0.05 mm

Customizable stroke: 50-3000mm

Synchronous belt stroke: S3M-20

Synchronous belt lead: 150 mm

Maximum speed: 2000 mm/s

For industrial automation demanding rapid response and accuracy, the FSKT-65 High Speed Linear Actuator is the ultimate solution. This advanced belt driven linear actuator combines exceptional speed with reliable precision, making it a critical component for modern production lines. Experience the power of our cutting-edge linear actuator belt technology in this superior linear actuator.

The FSKT-65 High Speed Synchronous With Semi-sealed Belt Module is a high-speed synchronous semi-sealed belt module suitable for industrial automation scenarios requiring high precision and fast response. Its semi-sealed design effectively prevents the ingress of dust and impurities, ensuring stable operation in harsh environments. The module utilizes synchronous drive technology to achieve precise speed and position control, meeting the high dynamic performance requirements of complex working conditions.

FSKT-65 is a synchronous belt driven linear actuator designed for high-speed and light-load scenarios. It combines efficient transmission and basic protection features. The core introduction is as follows:

⚡ I. Core structure and transmission

Synchronous belt drive system
Using low backlash synchronous belt and high-precision pulley set, supporting a maximum linear speed of 5m/s, suitable for high speed linear actuator material transmission and sorting scenarios. Optional polyurethane (wear-resistant) or steel wire core (anti-stretching) synchronous belt material, adapted to different load requirements.

Semi-sealed protection design
The top is covered with a flexible dust barrier to prevent large dust particles from invading; the side adopts a labyrinth sealing structure to take into account heat dissipation and basic protection. Protection level reaches IP40, suitable for clean workshops or light dust environments.

Lightweight aluminum alloy frame
One-piece extruded aluminum alloy base, 30% lighter, maintains structural rigidity, and suppresses high-speed vibration. Surface anodizing treatment to improve corrosion resistance.

📊 II. Key performance parameters

III. Technical advantages

High speed and low noise: The friction coefficient is only 1/20 of the ball screw, and the noise is ≤50dB, suitable for quiet environments (such as laboratories, medical equipment).

Long stroke adaptation: Supports ultra-long linear motion (up to 8.5m), replaces traditional chain/cam mechanisms, and reduces maintenance costs. This makes it an ideal linear actuator.

Modular expansion: Compatible with direct connection of stepper/servo motors, and multiple modules can be spliced to form a multi-axis system.

🏭 IV. Typical application scenarios

Logistics sorting line: high-speed transmission and precise diversion of express parcels (depending on 5m/s speed and ±0.05mm positioning).
Electronic assembly: fast transfer of PCB board assembly line, lightweight component placement.
Packaging machinery: continuous feeding of film coils, high-speed sealing machine positioning platform.

️ Selection comparison suggestions

This module provides a cost-effective linear actuator motion solution for high-speed and light-load scenarios through synchronous belt drive and lightweight design, and is particularly suitable for replacing traditional cam or chain drive mechanisms. This module is a high speed linear actuator system featuring a semi-enclosed belt driven linear actuator design (model designation FSKT-65).

Key features include:

• High-speed performance: Designed specifically for high-speed mechanical transmission, achieving synchronization accuracy of ±0.1mm.

• Semi-enclosed structure: Strikes a balance between the flexibility of an open design and the protective properties of a fully enclosed design.

• Belt drive: Offers low noise, lubrication-free operation, and vibration reduction, leveraging the superior linear actuator belt.

• Modular design: Supports plug-and-play installation and simplifies maintenance. Typical applications include automated production lines, precision instrument transmission, and high-speed packaging equipment.

The High-Speed Synchronous With Semi-sealed Belt Driven Linear Actuator FSKT-65 offers the following key advantages:

Compact Structure and Efficient Transmission
The semi-sealed design ensures protection while optimizing space utilization. When paired with a synchronous linear actuator belt drive, it can achieve linear speeds of up to 5 m/s and transmission efficiency exceeding 95%. The modular design supports multi-axis configurations to meet complex motion control needs, making it a versatile linear actuator.

Precise Motion Control
The synchronous linear actuator belt drive offers a constant transmission ratio and micron-level positioning accuracy. When paired with a servo motor, it enables multi-stage control and multi-point positioning, making it suitable for high-precision automation scenarios.

Enhanced Environmental Adaptability
The semi-sealed structure effectively blocks dust and oil mist intrusion, extending belt and bearing life. It supports a wide operating temperature range of -20°C to 80°C, adapting to the harsh conditions of industrial sites.

Low Maintenance and Long Life
The self-lubricating design reduces maintenance frequency, achieving a linear actuator belt life of over 5,000 hours. The aluminum alloy body and anti-corrosion coating enhance overall durability.

Safe and Reliable Operation
Built-in overload protection and a belt driven linear actuator eliminate slippage risks, ensuring stability even at high speeds. Industrial-grade protection meets IP54 standards.

The FSKT-65 High-Speed Linear Actuator (featuring a semi-sealed synchronous belt module) is an industrial

-grade transmission device specifically engineered for high-precision, high-speed linear motion control. It is

widely deployed in applications such as automated equipment, precision assembly, and inspection systems.

⚙️ Core Features & Technical Highlights

**High-Speed Response & Smooth Operation**

Utilizing a high-performance servo motor and a synchronous belt drive system, the unit achieves a maximu

m linear speed of 1.5–2.0 m/s. Its exceptional acceleration capabilities make it ideal for meeting the deman

ds of high-frequency reciprocating operations.

**Semi-Sealed Structure: Dust & Splash Resistant**

The module features a semi-sealed protective cover design that effectively blocks metal debris, dust, and

minor liquid splashes. This makes it suitable for use in mildly contaminated environments, thereby extendi

ng the service life of internal components.

**High-Precision Positioning: Repeatability of ±0.05 mm**

Equipped with a high-resolution encoder and precision linear guides, the system ensures precise and stable

 motion control—making it perfectly suited for automated processes with strict positioning requirements.

**Modular Design & Flexible Installation**

Supports multi-axis combinations (e.g., X+Y, X+Z) as well as horizontal or vertical mounting configurations.

Its standardized interfaces facilitate seamless integration into various automated production lines, thereby

shortening equipment development cycles.

**Customizable Long-Stroke Capabilities**

Standard stroke lengths range from 200 mm to 2000 mm; however, longer strokes can be customized to meet

 specific application needs, effectively overcoming the stroke limitations inherent in traditional pneumatic

 cylinders.

**Low-Noise Operation**

Thanks to an optimized synchronous belt tensioning structure and vibration-damping design, noise levels

remain below 65 dB even during high-speed operation, contributing to a more comfortable working environ

ment.

🏭 Typical Application Scenarios

**Table:**

**Application Field** | **Function/Use**

**Electronics Manufacturing** | Chip handling, PCB board transfer, dispensing positioning

**Packaging Machinery** | High-speed sorting, carton loading/pushing, sealing positioning

**Vision Inspection** | Sliding stage/scanning platform for precise camera positioning/movement

**Medical Equipment** | Automated sample processing, reagent dispensing systems

**Laser Processing** | Optical path adjustment, workpiece positioning platforms

✅ Selection Guidelines & Important Considerations

**Load Matching:** The rated load capacity for the FSKT-65 typically ranges from 5 to 20 kg. Exceeding this

limit will negatively impact both speed and service life; therefore, it is recommended to maintain a safety

margin of 20%. Lubrication Maintenance: Regular lubrication and maintenance of the guide rails and synch

ronous belts can significantly enhance durability.

Control Integration: Requires pairing with a servo drive and motion controller; pulse-based or bus-based

control methods (e.g., EtherCAT) are recommended.

Environmental Suitability: Although it offers semi-protective capabilities, it is not suitable for high-pressure

 washdown or continuously damp environments; external protective covers may be installed if necessary.
