Maximum horizontal load 25KG
Model: FSKT-136
Semi-dense belt module
Repeat positioning accuracy: ±0.05 mm
Customizable stroke: 50-3000mm
Synchronous belt stroke: S5M-25
Synchronous belt lead: 120 mm
Maximum speed: 2000 mm/s
The semi-dense belt module is a transmission device that uses a belt as a transmission medium, drives the driving wheel of the synchronous belt to rotate through a motor, and then drives the slider on the synchronous belt guide rail to move linearly. Its characteristics are mainly reflected in the following aspects:
Semi-dense dustproof design: The module is made of aluminum profiles and has the characteristics of semi-dense dustproof, which can effectively prevent the intrusion of dust and impurities and ensure the stability and reliability of the equipment.
High efficiency and stability: The motor drive makes the belt module run more stable and efficient, which can meet the high efficiency requirements of the production line for material transportation.
High precision: The high rigidity design ensures the high precision of the module slide, so that the material can reach the specified position accurately during the transportation process.
Strong load capacity: The module can improve its load capacity by changing the profile material and guide rail rigidity to meet the needs of different production lines.
Easy installation and maintenance: The module is exquisitely designed, and each component is strictly produced in accordance with standards, making installation and maintenance relatively simple.
For manufacturers seeking unparalleled precision and robust performance in their industrial drive lathes, the FSKT-136 Belt Module is the definitive choice. This sophisticated industrial linear actuator is engineered to transform your machining capabilities, offering a level of accuracy and durability that sets new industry benchmarks. As a leading belt driven linear actuator, it integrates seamlessly into high-demand environments, making it an essential component for modern industrial actuators.

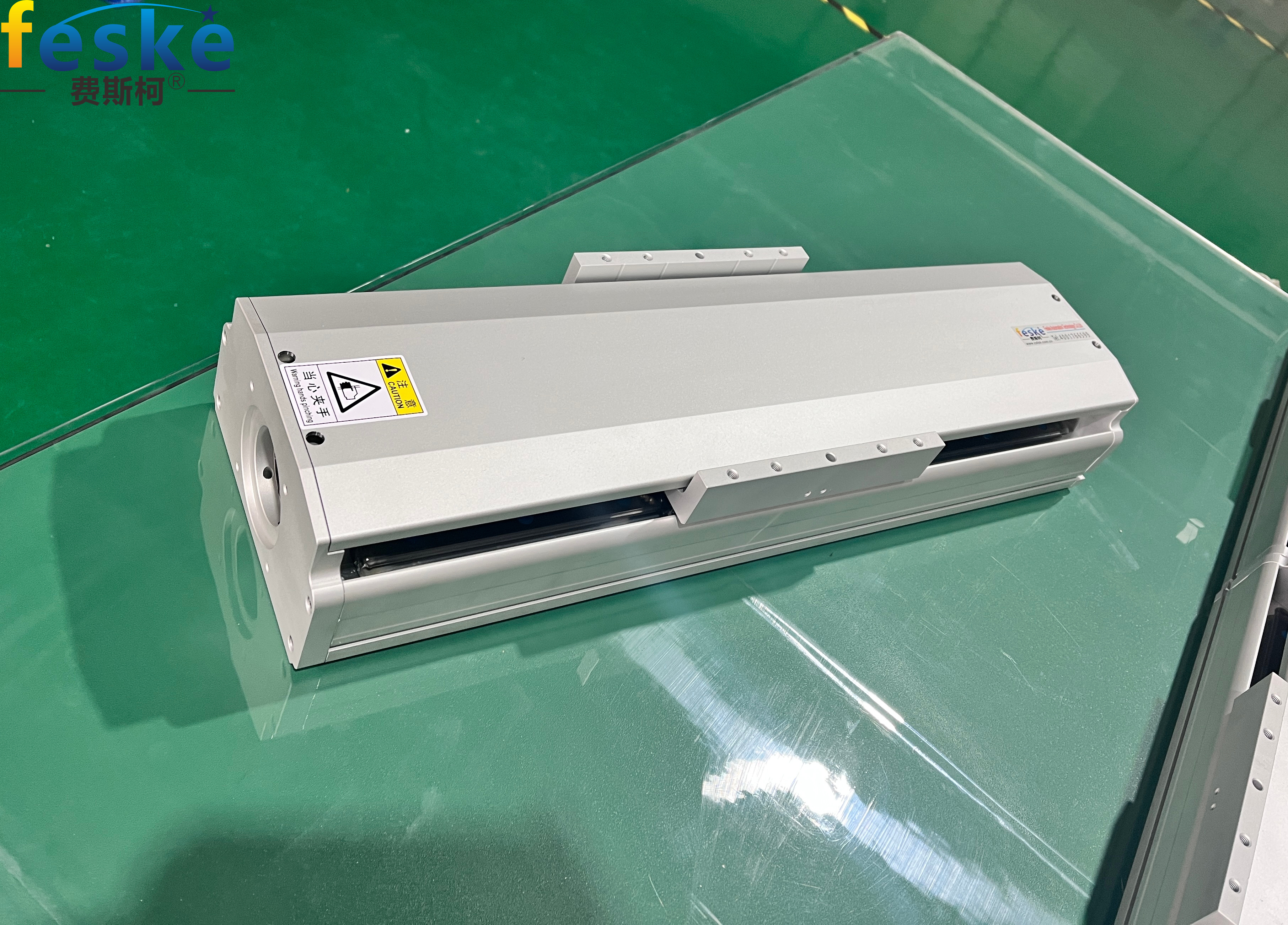

The FSKT-136 Industrial Drive Lathe High-Precision Belt-Driven Linear Actuator is a synchronous belt-driven
linear actuator specifically designed for high-precision, heavy-load industrial lathes and automated equipm
ent. Featuring long travel range, high rigidity, and excellent dynamic response capabilities, it is ideally suited
for smart manufacturing environments with stringent requirements for positioning accuracy and operation
al stability.
🔧 Core Features & Technical Highlights
1.
**Ultra-High Precision Positioning Capability**
Equipped with high-precision linear guides and a pre-tension adjustment mechanism, it achieves a repetitiv
e positioning accuracy of ±0.015mm. When paired with a high-performance servo system, it enables micron
-level motion control, satisfying the demands of precision machining applications.
2.
**High-Rigidity, Heavy-Load Structural Design**
Utilizing a high-strength, integrated aluminum alloy base combined with double-row roller guides, it boasts
a rated load capacity of 136kg (the origin of the FSKT-136 model designation). Its robust structure can withst
and momentary shock loads at its limit capacity, ensuring zero deformation during continuous cutting oper
ations or high-speed reciprocating motion.
3.
**Long Travel Range & Efficient Transmission**
Supports a maximum travel range exceeding 2.5 meters. Through optimized synchronous belt tension comp
ensation and intermediate support structures, it effectively suppresses vibration and slack during long-distance travel, maintaining operational smoothness and extending service life even at high speeds.
4.
**High-Performance Synchronous Belt System**
Employs a polyurethane belt with a steel wire core, offering high tensile strength and low elongation. It deli
vers a transmission efficiency exceeding 90%, generates noise levels below 65dB(A), and supports a maximu
m operating speed of 1.8 m/s.
5.
**Modularity & Strong Compatibility**
Features standardized mounting interfaces that support multi-axis combinations for constructing XY/Z moti
on platforms.
It is directly compatible with mainstream servo motors (e.g., Yaskawa, Panasonic, Inovance) or stepper moto
r systems, supports both pulse and bus-based control methods, and is easily integrated into PLC-based auto
mation systems.
6.
**Industrial-Grade Protection Design**
Available in optional semi-enclosed or fully enclosed versions, effectively shielding against dust and debris.
This makes it particularly suitable for environments involving metal shavings—such as lathe cutting or laser
processing—thereby extending the service life of core components. 🏭 Typical Application Scenarios
Table
Application Field
Operational Requirements
Key Advantages
CNC Lathe Auto Loading/Unloading
High-speed handling; precise fixture docking
High rigidity ensures stability in repetitive operations
Precision Parts Inspection Platform
Micron-level motion stage
Ultra-high positioning accuracy enhances measurement consistency
Laser Cutting Head Drive System
High-speed reciprocating motion
Low-inertia design enables rapid start-stop response
Automated Assembly Line
Multi-station material transfer
Modular design shortens equipment development cycles
⚙️ Selection and Usage Recommendations
Power Matching: It is recommended to maintain a 20% torque margin on the drive motor to prevent frequen
t overloads from triggering safety protection.
Speed Settings: During high-speed operation, properly configure acceleration and deceleration curves to p
revent mechanical shock that could compromise precision and service life.
Maintenance: Regularly inspect the tension of the synchronous belt; lubricate guide rails every 3–6 months
(lithium-based grease is recommended).
Environmental Requirements: Operating temperature range: -10°C to +60°C. Avoid environments with highly
corrosive gases or direct water exposure; install external protective enclosures if necessary.
The accuracy of the slide module directly affects the quality of the product.
Using multi-axis electric cylinders reduces labor costs
Widely used in laser welding, laser cutting, glue coating machines, spraying machines, punching machines, dispensing machines, small CNC machine tools, engraving and milling machines, plotters, cutting machines and other conveyors, sorting equipment, applicable testing equipment, educational equipment, etc.
