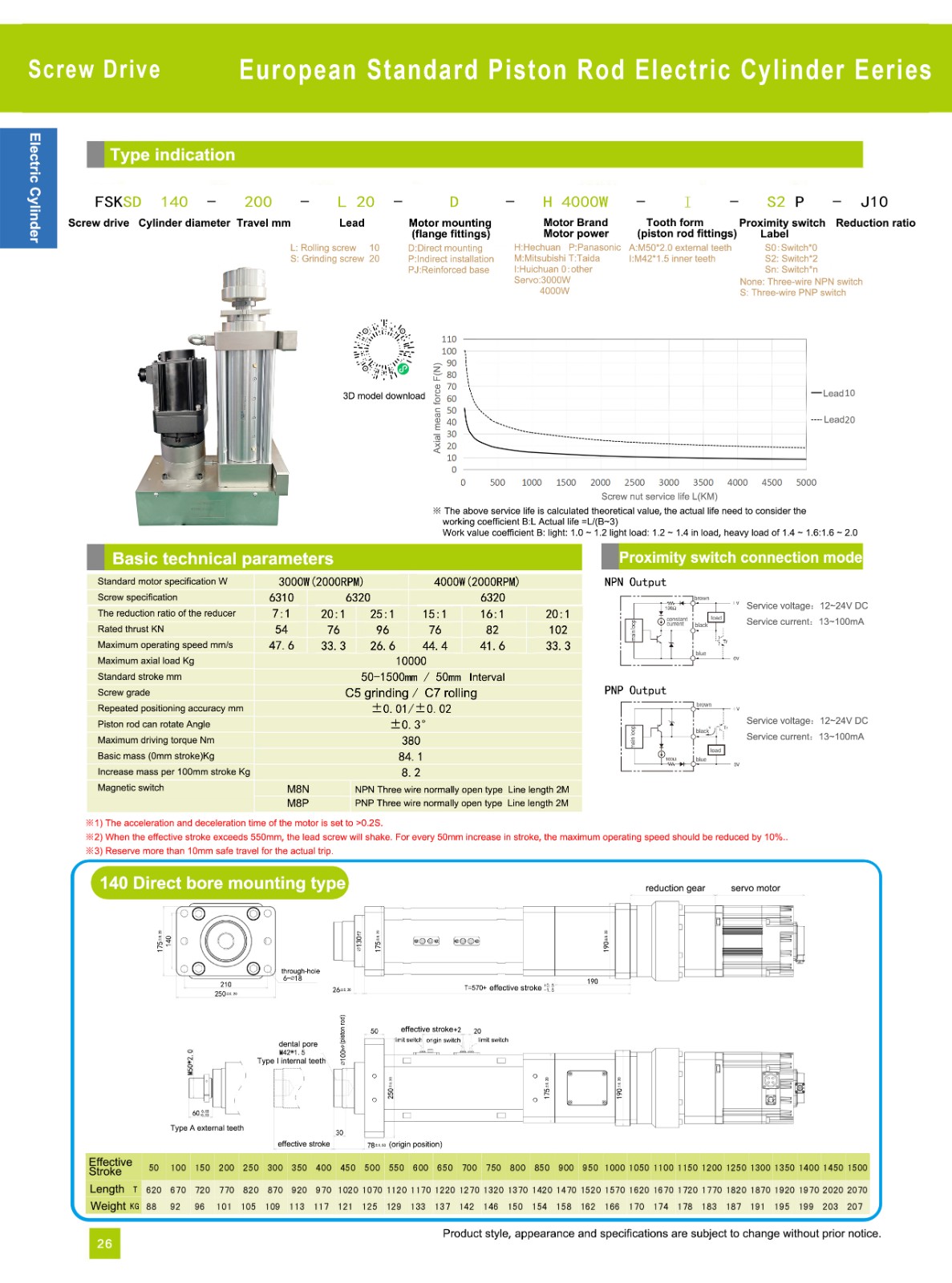

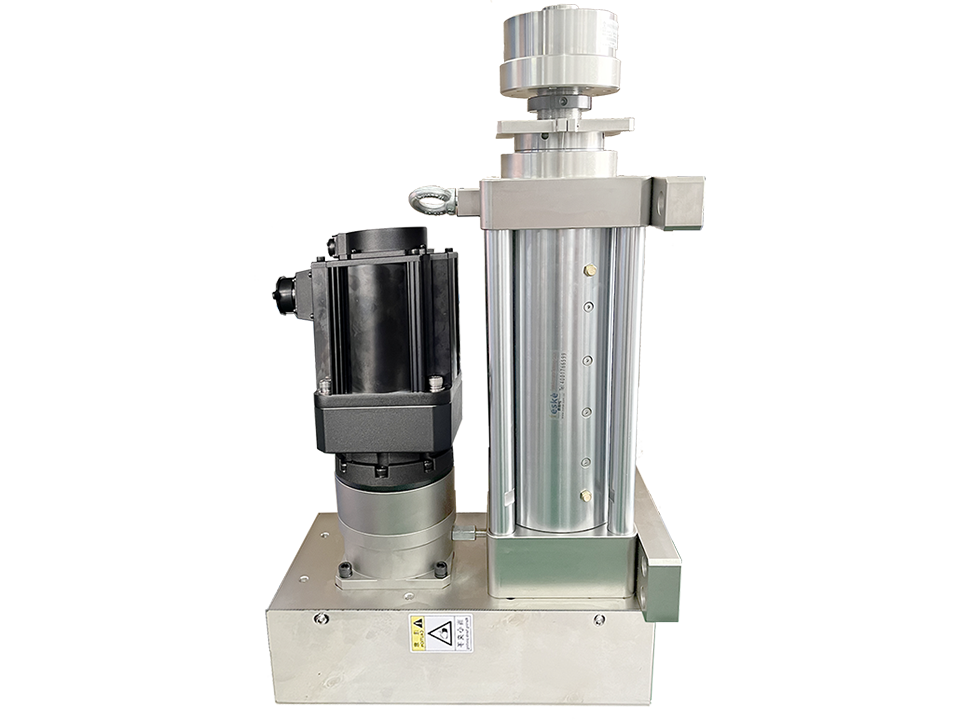

Electric Cylinder With Integrated Motor Drive FSKSD-140

Module:FSKSD-140 Screw outer diameter: φ63 mm.Lead: 20 mm Motor power: 4000W (motor can be customized)

Maximum horizontal load 10KG

Repeat positioning accuracy: ±0.02 mm

Customizable stroke: 50-1500mm

Screw outer diameter: φ63 mm

Lead: 20 mm

Motor power: 4000W (motor can be customized)

Maximum speed: 50 MM/S

Electric cylinder

It is a highly integrated mechatronic linear actuator that compactly integrates servo motors, drive

controllers and precision mechanical transmission components, significantly reducing the need for

external wiring and independent drives, and improving system reliability and space utilization. ‌

Core features include:

Drive and control integration‌: Built-in high-performance servo drives (such as iXC4e enhanced PWM

drives), support for brushless DC (BLDC), brushed DC (BDC) and other motor types, can directly receive

motion instructions and close-loop control motor operation‌1;

High-precision motion performance‌: The current loop and servo loop are digitally closed-loop

controlled at a frequency of 20 kHz to ensure that positioning accuracy and repeatability meet

industrial-grade precision requirements‌1;

Scalability and flexibility‌: Up to 12 coordinated motion axes can be expanded and controlled through

the HyperWire® fiber optic bus, suitable for multi-axis linkage scenarios‌1;

‌Strong environmental adaptability‌: The operating voltage supports up to 340 VDC, and the peak

current capacity reaches 30 A, which can adapt to power fluctuations and high load requirements in

industrial environments‌1.

Its typical applications include industrial automation precision positioning (such as semiconductor

equipment), robot joint drive, and mechanical systems that require compact high thrust output,

reducing overall costs and failure rates by eliminating external controller dependence.

Tags:

Electric cylinder electric cylinder motor servo integrated motor drive actuators

What should I pay attention to when choosing a slide module?

The accuracy of the slide module directly affects the quality of the product.
Why do we need to use multi-axis electric cylinders?

Using multi-axis electric cylinders reduces labor costs
Application areas of servo electric cylinders?

Widely used in laser welding, laser cutting, glue coating machines, spraying machines, punching machines, dispensing machines, small CNC machine tools, engraving and milling machines, plotters, cutting machines and other conveyors, sorting equipment, applicable testing equipment, educational equipment, etc.
How to guarantee after-sales service？

Establish standardized network marketing services and mature technical service management systems around the world to provide dealers and users with high-quality pre-sales, in-sales and after-sales services. During the warranty period, provide users with fast, timely and efficient free maintenance services; outside the warranty period, users will still receive our enthusiastic and thoughtful paid technical services. We always pursue "zero defects in products and 100% customer service satisfaction".
