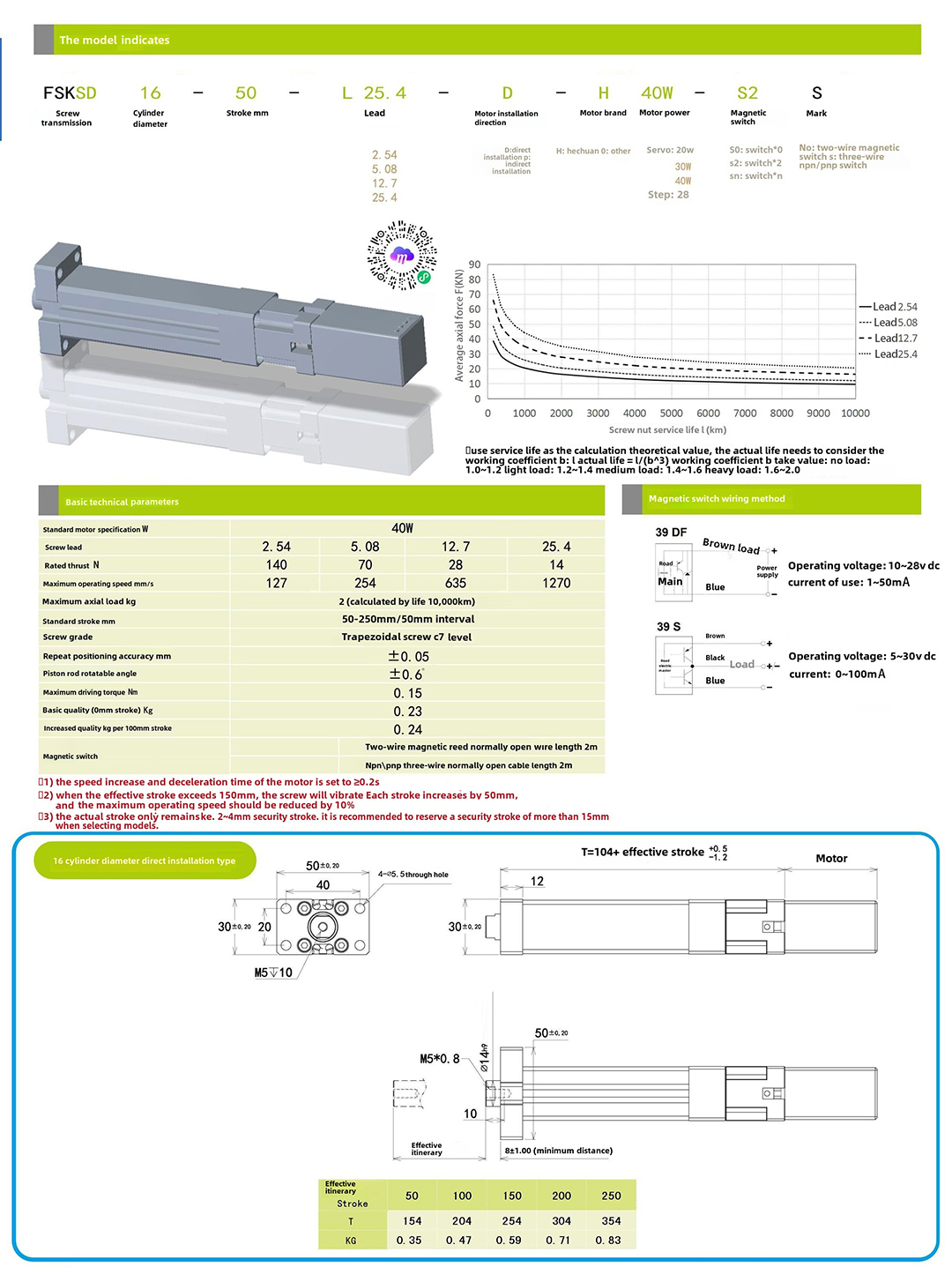

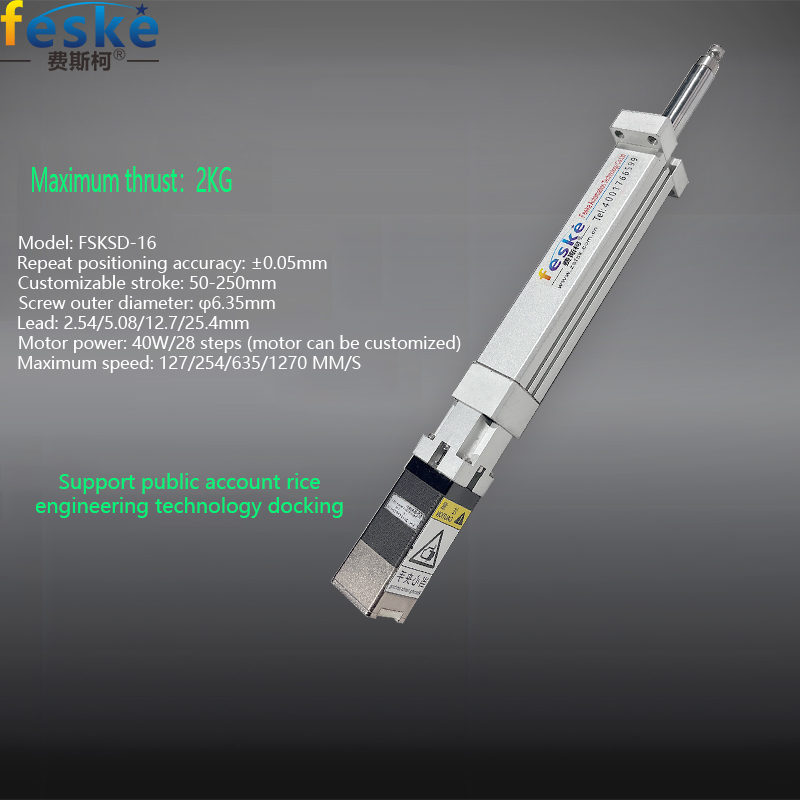

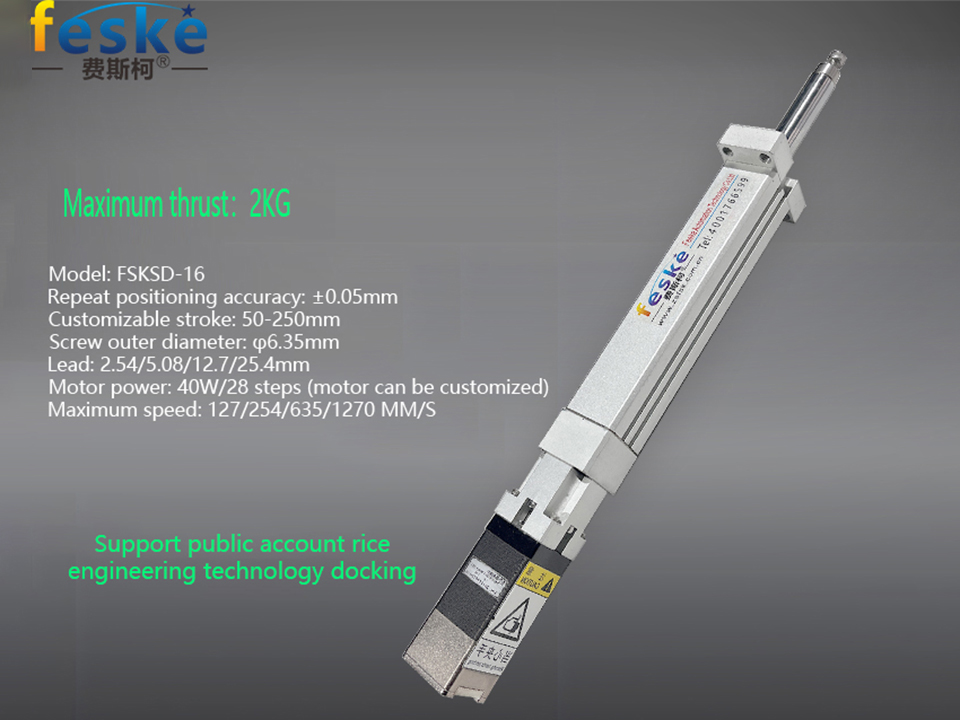

Motor power: 40W/28 steps (motor can be customized)
Maximum speed:127/254/635/1270 MM/S
The servo electric cylinder is a modular product that integrates the servo motor and the lead screw.
Working principle: The servo electric cylinder converts the rotary motion of the servo motor into linear motion, and at the same time converts the precise speed control, precise rotation speed control, and precise torque control of the servo motor into precise speed control, precise position control, and precise thrust control to achieve high-precision linear motion.
Functional characteristics of servo cylinder
High-precision positioning of servo cylinder: Integrated servo cylinder adopts high-precision encoder or grating ruler as position feedback element, combined with advanced control algorithm, to achieve ±0.01mm or even higher positioning accuracy, Integrated servo cylinder meets the strict requirements of precision machining, automated assembly and other fields.
Quick response of servo cylinder: The optimized motor and transmission system of Integrated servo cylinder ensure that the electric cylinder can respond to control signals quickly, achieve high-speed movement and improve production efficiency.
Large load capacity of servo cylinder: According to customer needs, high load servo cylinder meets the needs of various industrial application scenarios.
Long stroke design of servo cylinder: precision servo cylinder supports customized long stroke electric cylinder, and the maximum stroke of precision servo cylinder can reach several meters. Precision servo cylinder is suitable for large equipment, automated production lines and other occasions.
Intelligent control of servo cylinder: high load servo cylinder integrates advanced PLC or motion controller, supports multiple communication protocols, and is easy to integrate with host computer or automation system to achieve remote monitoring, fault diagnosis and parameter adjustment.
Servo cylinder energy saving and environmental protection: Electric cylinder manufacturers use high-efficiency motors and intelligent energy-saving technology to reduce energy consumption and reduce environmental impact.

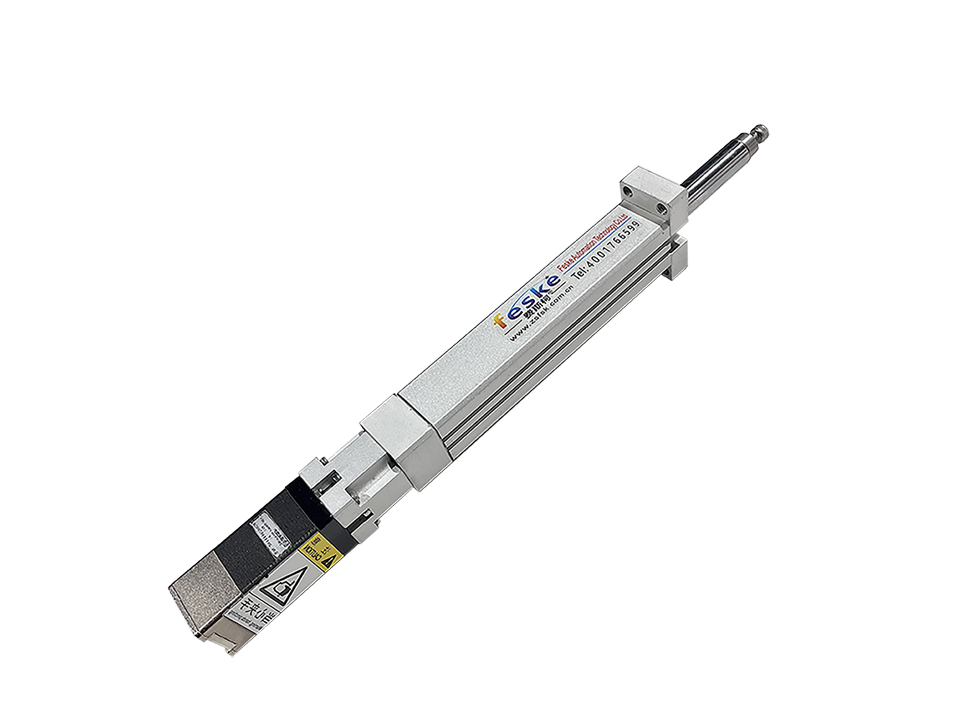

The Precision High Load Servo Cylinder FSKSD-16, a high-precision, heavy-load servo actuator, demonst
rates its core strengths in the following technical features:
Balancing High Load and Compact Design
Utilizing servo motor drive technology, it achieves high power output within confined spaces, making it
suitable for space-sensitive, high-load applications such as robotic arms and precision assembly. Its dou
ble-sided ball bearing guide rail design further enhances structural rigidity and extends service life.
Closed-Loop Control and Repeatability
A closed-loop feedback system enables precise position and velocity control, minimizing error accumula
tion and achieving repeatability below 5 arc seconds. Combined with a high-rigidity ball screw (available
in sizes 32-100), it ensures an optimized force-to-speed ratio and stable motion.
Dynamic Performance and Adaptability
It maintains constant torque at high speeds and supports short-term overloads (e.g., 5-10 times the rate
d torque), making it suitable for applications requiring rapid response, such as CNC machining and auto
mated handling. Select models offer IP65 protection and food-grade certification, making them suitable
for harsh industrial environments.
Modularity and Compatibility
Compatible with a variety of servo motor brands (such as Yaskawa and Mitsubishi), it offers flexible side
-mount and axial-mount configuration options. Some versions integrate an IO-Link interface for easy
What should I pay attention to when choosing a slide module?
The accuracy of the slide module directly affects the quality of the product.
Why do we need to use multi-axis electric cylinders?
Using multi-axis electric cylinders reduces labor costs
Application areas of servo electric cylinders?
Widely used in laser welding, laser cutting, glue coating machines, spraying machines, punching machines, dispensing machines, small CNC machine tools, engraving and milling machines, plotters, cutting machines and other conveyors, sorting equipment, applicable testing equipment, educational equipment, etc.
