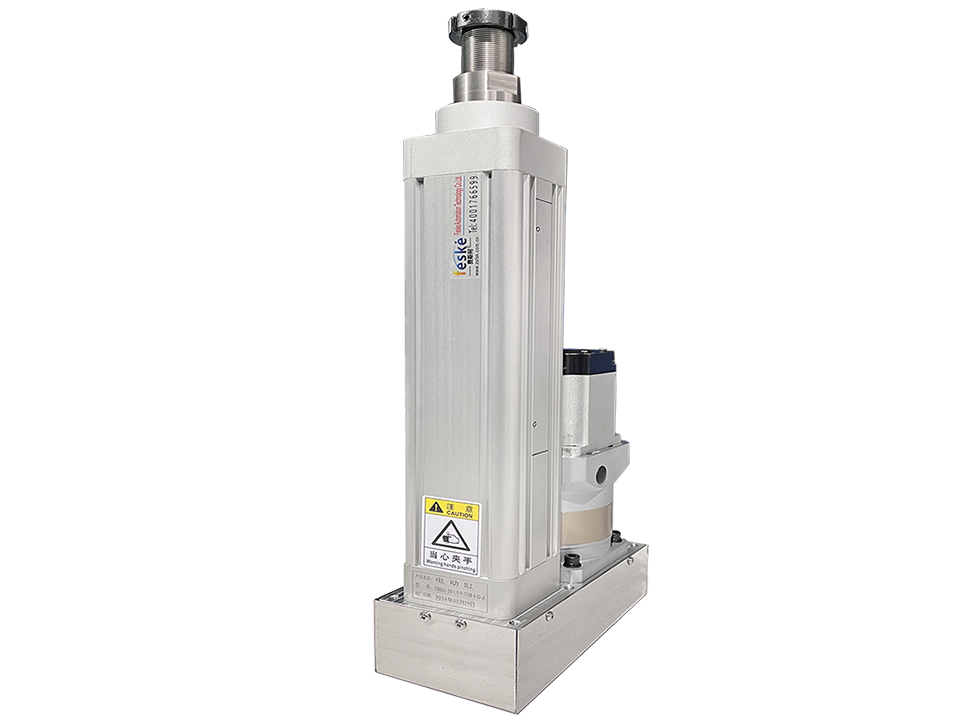

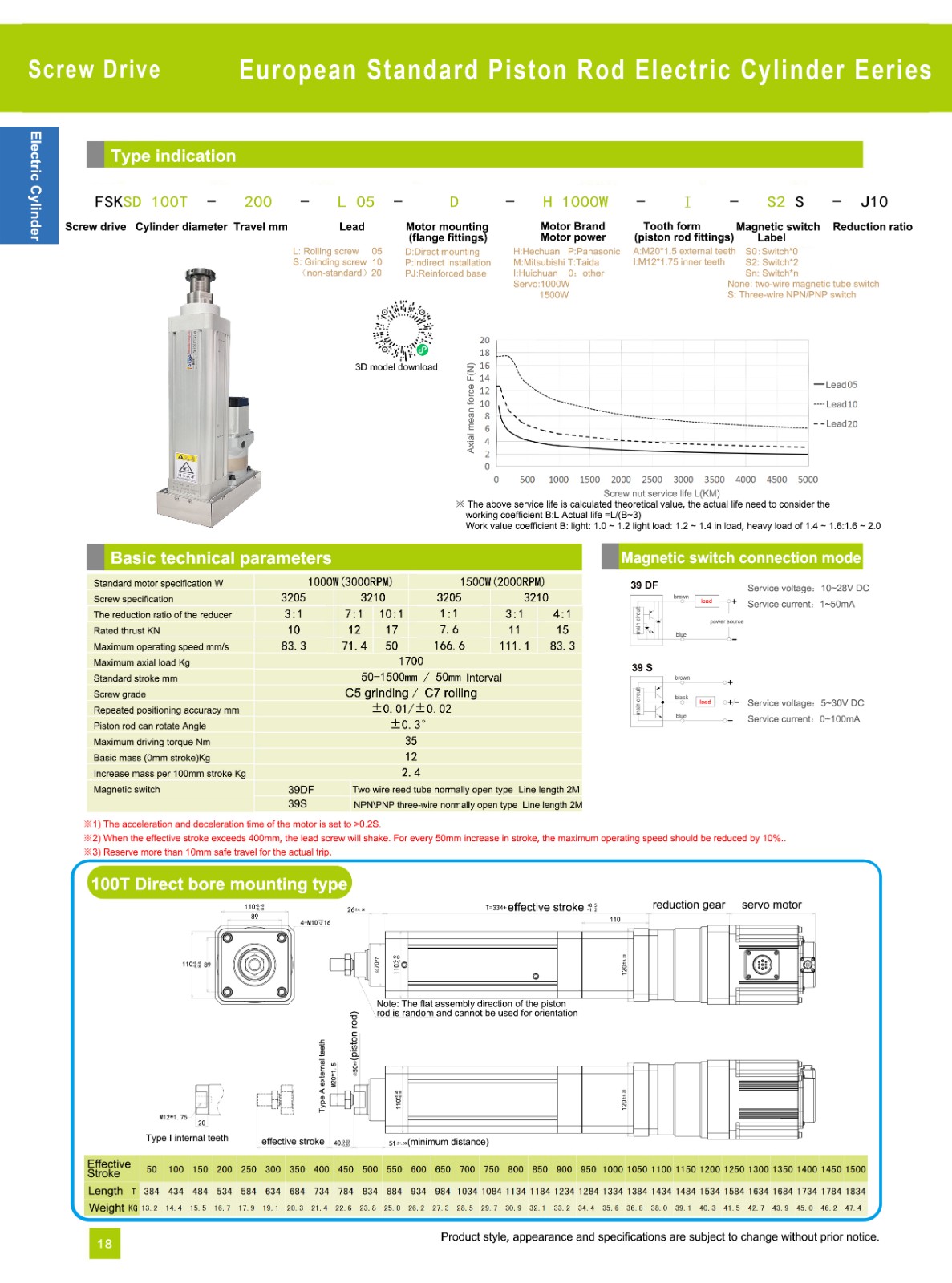

Maximum thrust: 1700KG
Repeat positioning accuracy: ±0.02 mm
Customizable stroke: 50-1500mm
Screw outer diameter: φ32 mm
Lead: 05/10 mm
Motor power: 1500W (motor can be customized)
Maximum speed: 150 MM/S
Supports the installation of production accessories. Factory independent production, quality assurance
Electric cylinder actuator typical application scenarios
Electric cylinder actuatorfor precision press-fitting
Automobile engine parts assembly, 100 kN thrust to ensure interference fit accuracy, ±0.02mm repeated positioning to avoid component damage38.
Electric cylinder actuatorfor high-speed handling
Electronic production line material transfer, 500 mm/s speed with 0.1s response time to improve cycle efficiency29.
Electric cylinder actuatorfor dynamic simulation
Aerospace control surface testing, millisecond-level response to simulate aerodynamic load changes
Electric cylinders are transforming industrial automation. If you need precise, efficient, and powerful motion control, an electric cylinder is your answer. Unlike traditional hydraulic or pneumatic systems, electric cylinders offer unparalleled accuracy and repeatability, making them ideal for a vast range of applications.
The core advantages of the Small Precision High-Speed Servo Electric Cylinder lie in its high precision,
high speed, and high reliability, making it particularly suitable for applications requiring fast response
and precise control. Let me summarize its main features for you:
1. **High-Precision Control**
Using closed-loop servo control, it achieves a positioning accuracy of ±0.01mm and a thrust control
accuracy of 1%, suitable for applications with stringent requirements for position and force, such as
robot joints or precision assembly.
2. **High-Speed Response**
With a maximum speed of up to 1000mm/s, and excellent acceleration and deceleration performance,
it can quickly complete repetitive movements, improving production efficiency, commonly found in
automated production lines.
3. **High Reliability and Long Lifespan**
The robust design and strong impact resistance, with an IP66 protection rating, ensure stable operation
in harsh environments. The use of low-friction transmission components such as ball screws reduces
wear and extends service life.
4. **Flexible Configuration and Easy Maintenance**
It supports various installation methods (horizontal, vertical, angled, etc.) and drive types (servo, stepper,
etc.), and can be equipped with limit switches, reducers, and other accessories to meet different needs.
The simple structure makes maintenance easy, requiring only regular lubrication and no replacement of
easily worn parts.
5. **Energy Saving and Environmental Protection**
Compared to hydraulic and pneumatic systems, it consumes less energy, has no oil leakage, and is
cleaner and more environmentally friendly, aligning with the green trend of modern industry.
6. **Wide Applicability**
It is suitable for various fields, including entertainment (robotic arms, motion seats), military (flight
simulators), automotive (press machines, testing equipment), industrial (food machinery, welding
equipment), and robotics (dexterous hands).
The accuracy of the slide module directly affects the quality of the product.
Using multi-axis electric cylinders reduces labor costs
Widely used in laser welding, laser cutting, glue coating machines, spraying machines, punching machines, dispensing machines, small CNC machine tools, engraving and milling machines, plotters, cutting machines and other conveyors, sorting equipment, applicable testing equipment, educational equipment, etc.
