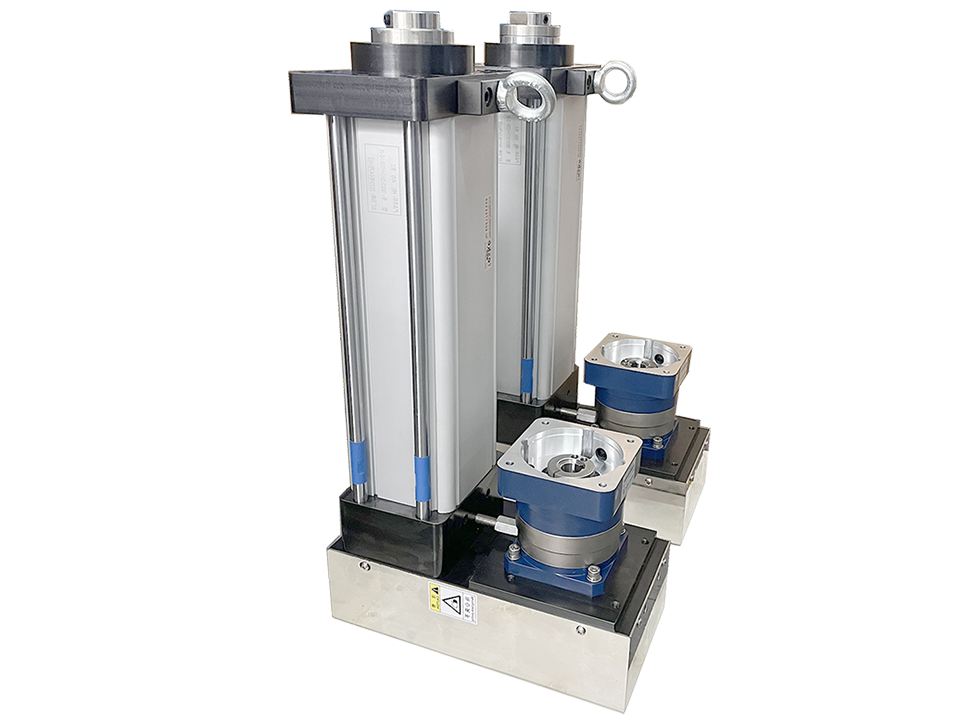

Maximum thrust: 6000KG
Repeat positioning accuracy: ±0.02 mm
Customizable stroke: 50-1500mm
Screw outer diameter: φ50 mm
Lead: 10 mm
Motor power: 3000W (motor can be customized)
Maximum speed: 50 MM/S
Repeat positioning accuracy ±0.02MM
Efficient multi-point positioning
Stainless steel reinforced base
Supports multiple accessories installation
Source factory professional production
Electric cylinder typical application scenarios
Electric cylinder for automatic parts assembly
Engine valve seat press-fitting, 63 kN thrust to achieve interference fit, force control accuracy ±1% to avoid damage to the workpiece67.
Electric cylinder for precision injection molding removal
Electric cylinder 800 mm/s high-speed transfer, combined with 0.2s beat to improve production line efficiency38.
Electric cylinder is used for environmental protection equipment drive
Sewage valve control system, IP66 protection to withstand acid and alkali environments, no risk of oil leakage
It is a high-performance industrial actuator that integrates servo motor, push rod and electric cylinder functions, with the following core features and applications:
⚙️ Electric cylinder core features
integrated servo motor IP65 waterproof and dustproof sealing design
The housing is made of aluminum alloy and has multiple sealing structures, which effectively resists the intrusion of water mist, oil and dust, ensuring stable operation in humid, dusty or oily environments2.
integrated servo motor integrated drive
• integrated servo motors Built-in high-precision servo motor (supports 24V/48V DC power supply), combined with planetary reducer and harmonic reducer technology, to achieve precise thrust control and low-noise operation1;
• integrated servo motors Push rod and motor direct connection integrated design (Integrated), eliminating external transmission chain, reducing failure points and improving response speed13.
integrated servo motor high-performance load and customization capabilities
• integrated servo motors maximum thrust 1000N, standard stroke 300mm (supports customization on demand), suitable for heavy machinery load scenarios2;
• integrated servo motors support automatic/manual dual-mode switching (controlled by a conversion switch), and can be manually operated in an emergency to improve equipment safety4.
🏭 integrated servo motor typical application scenarios
Industrial automation production line: integrated servo motor integrated at the end of the robot arm or assembly station to achieve precise positioning and high-repeatability push-pull actions (such as part press-fitting, fixture control)13;
Outdoor heavy equipment: integrated servo motors adapted to the battery compartment locking mechanism of new energy vehicles and the hydraulic replacement system of construction machinery, maintaining sealing reliability under vibration and temperature change environments23;

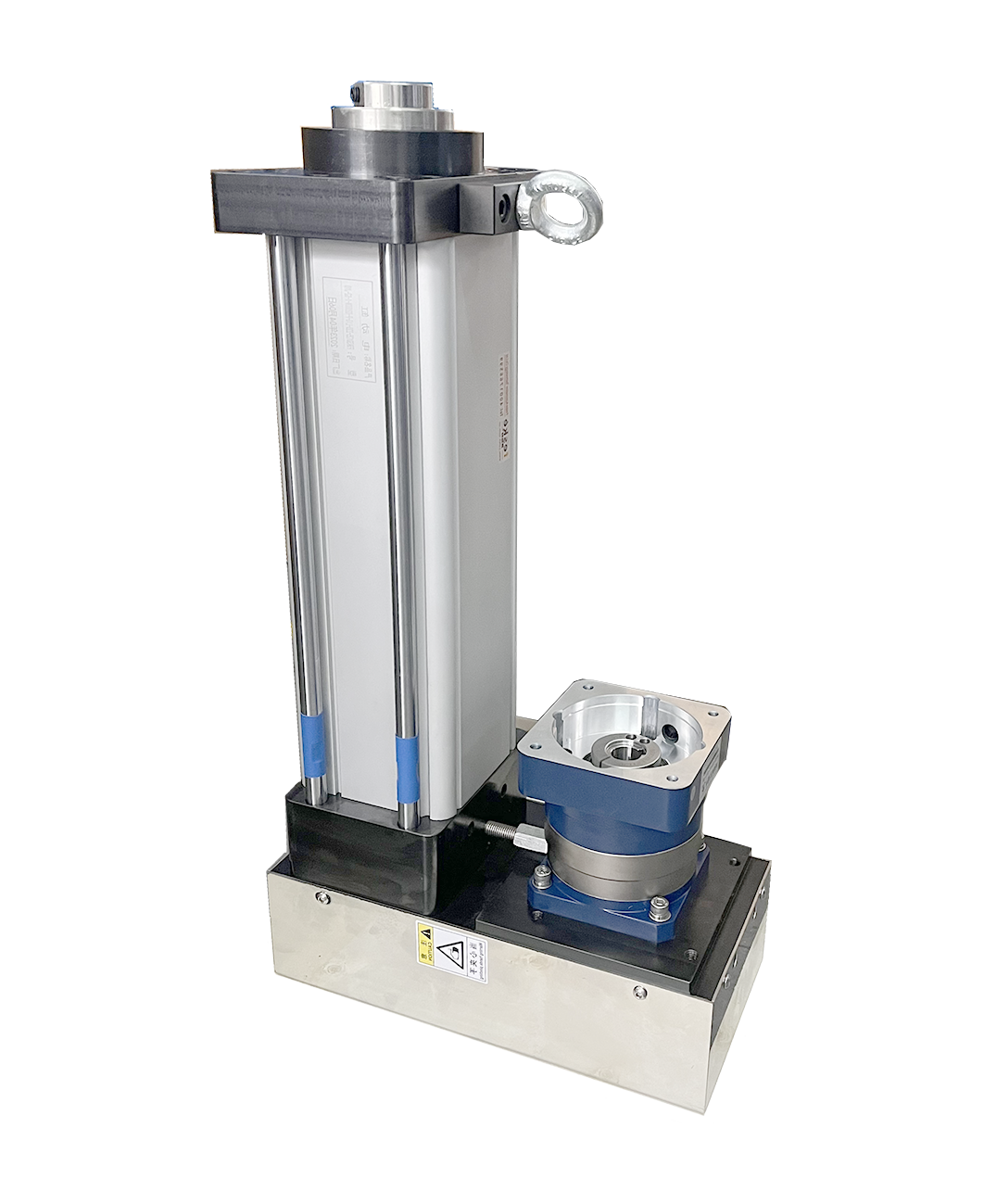

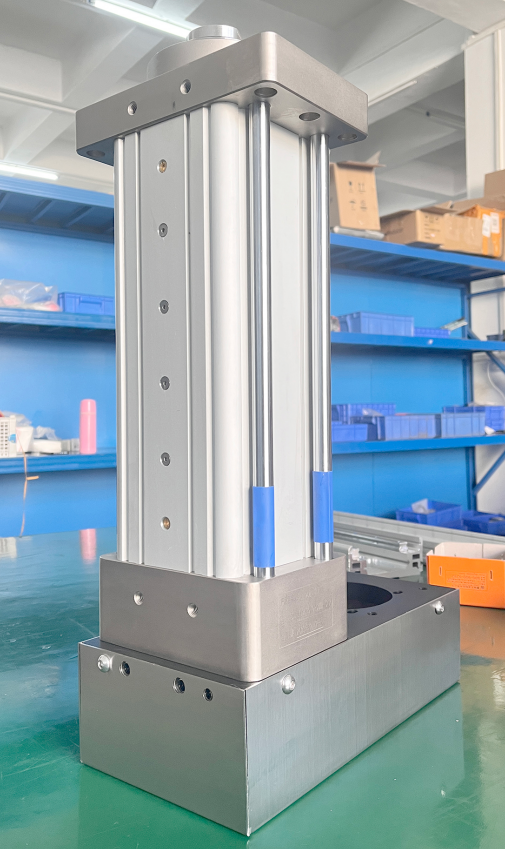

This waterproof electric linear actuator with an integrated servo motor boasts a core advantage: it
perfectly combines high precision, strong environmental adaptability, and high efficiency.
High precision and intelligent control are its core features. The servo motor achieves positioning
accuracy from ±0.01 to ±0.1 mm and precisely controls thrust, speed, and position, making it partic
ularly suitable for automated tasks requiring complex motion trajectories. Its built-in anti-rotation
mechanism can handle rotating loads while maintaining linear motion, expanding its application
scenarios.
Strong environmental adaptability makes it fearless in the face of challenges. Waterproof design
(e.g., IP67 rating) and corrosion-resistant materials allow it to operate stably in humid, dusty, and even
underwater environments. It can also withstand extreme conditions such as high and low temperatures,
with reliability far exceeding that of traditional hydraulic cylinders.
High efficiency and energy saving are also significant advantages. Electric drive directly converts
energy, achieving an efficiency of 80-90%, far exceeding the 40-60% of hydraulic systems, and o
perating with lower noise. Its compact telescopic design (e.g., multi-stage nested rods) achieves long
strokes within limited space, saving installation space.
Furthermore, it is easy to maintain (no risk of hydraulic oil leakage), highly integrated (motor, actuator,
and servo system are integrated), and supports networked control, making it easy to integrate into
intelligent systems. These characteristics make it highly competitive in fields with stringent precision
and environmental requirements, such as marine equipment and automated production lines.
The accuracy of the slide module directly affects the quality of the product.
Using multi-axis electric cylinders reduces labor costs
Widely used in laser welding, laser cutting, glue coating machines, spraying machines, punching machines, dispensing machines, small CNC machine tools, engraving and milling machines, plotters, cutting machines and other conveyors, sorting equipment, applicable testing equipment, educational equipment, etc.
